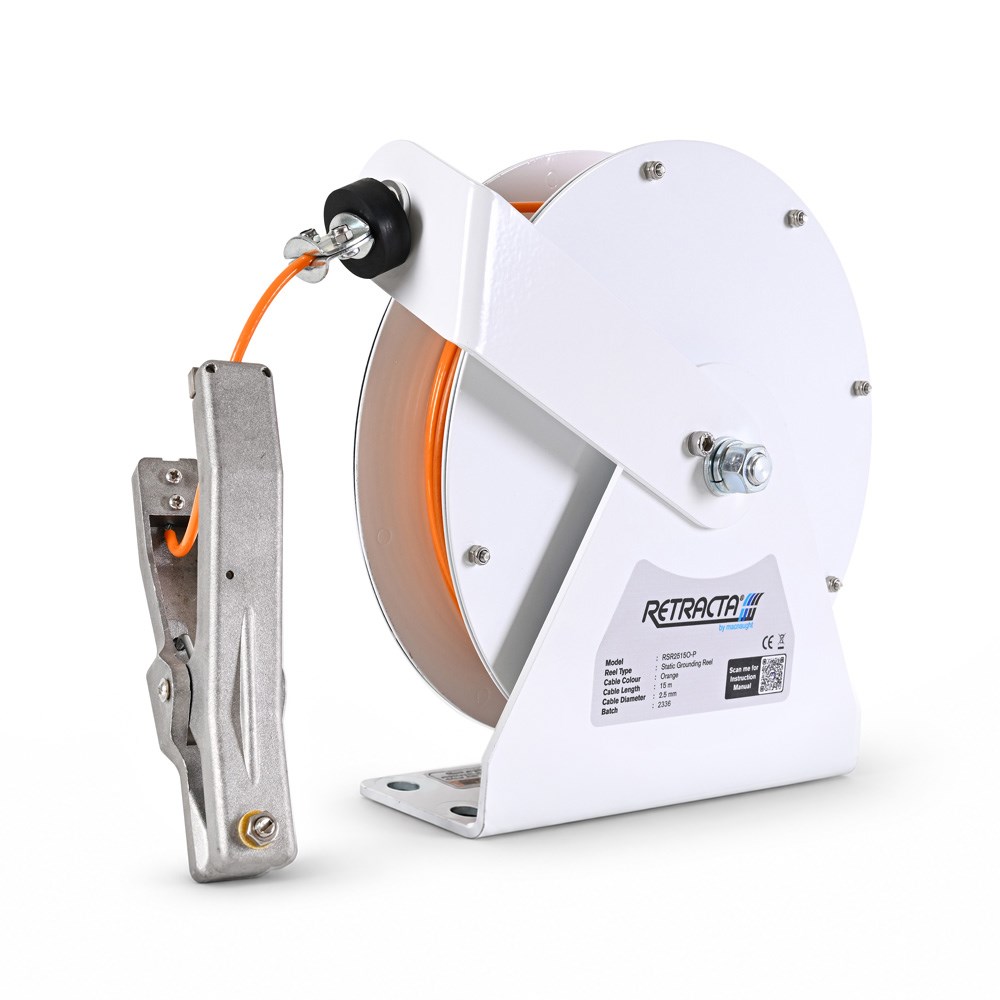

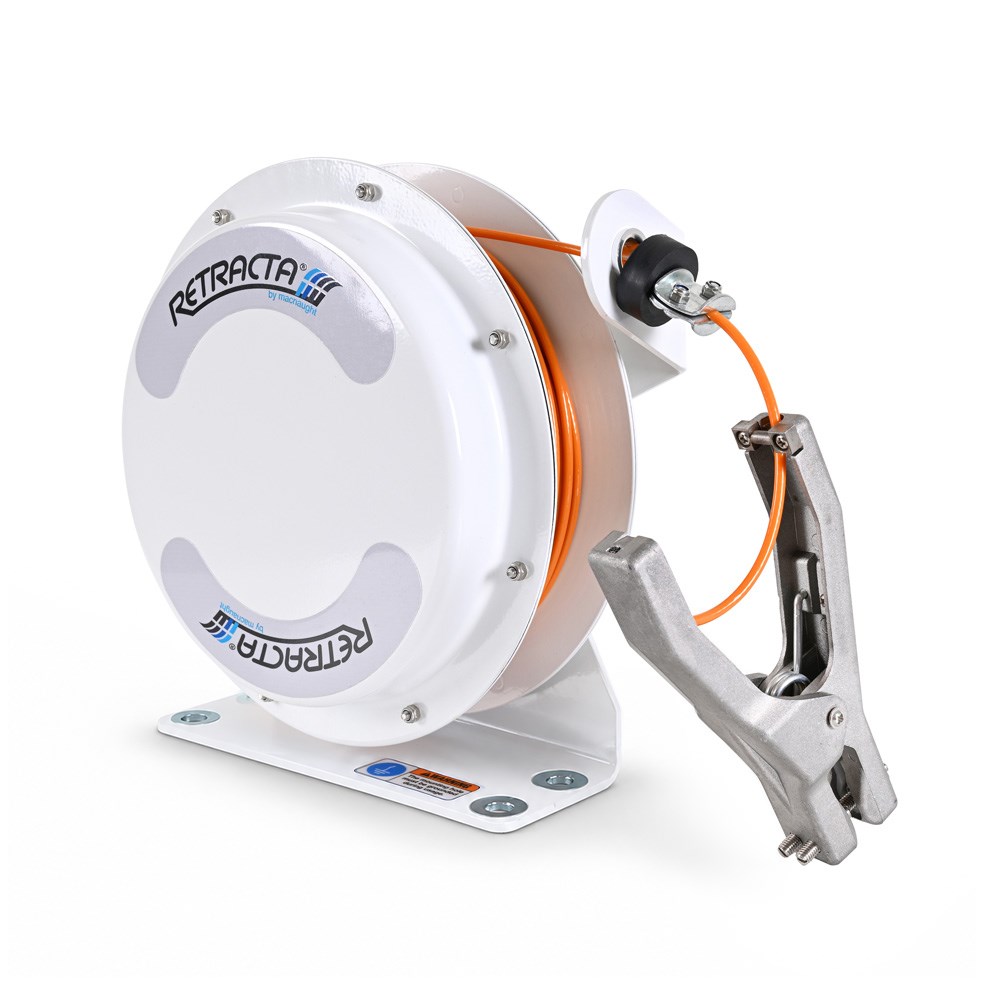

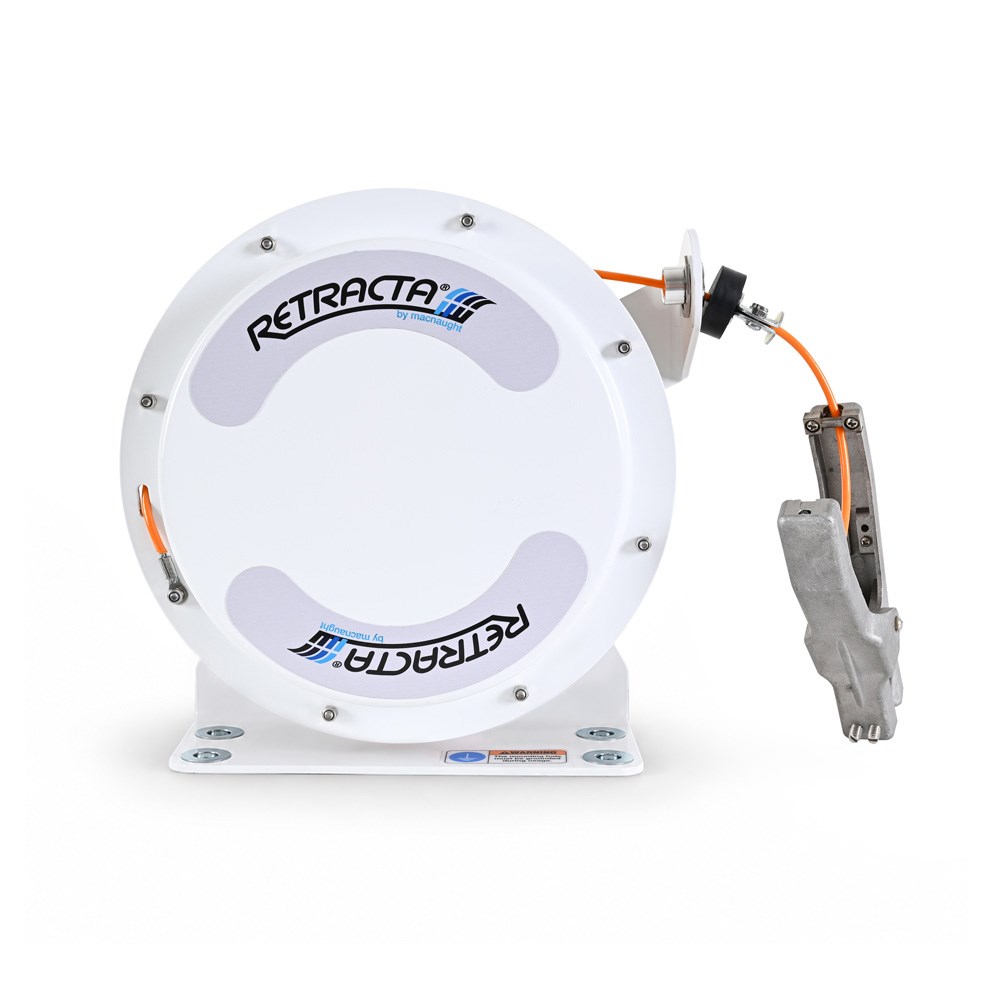

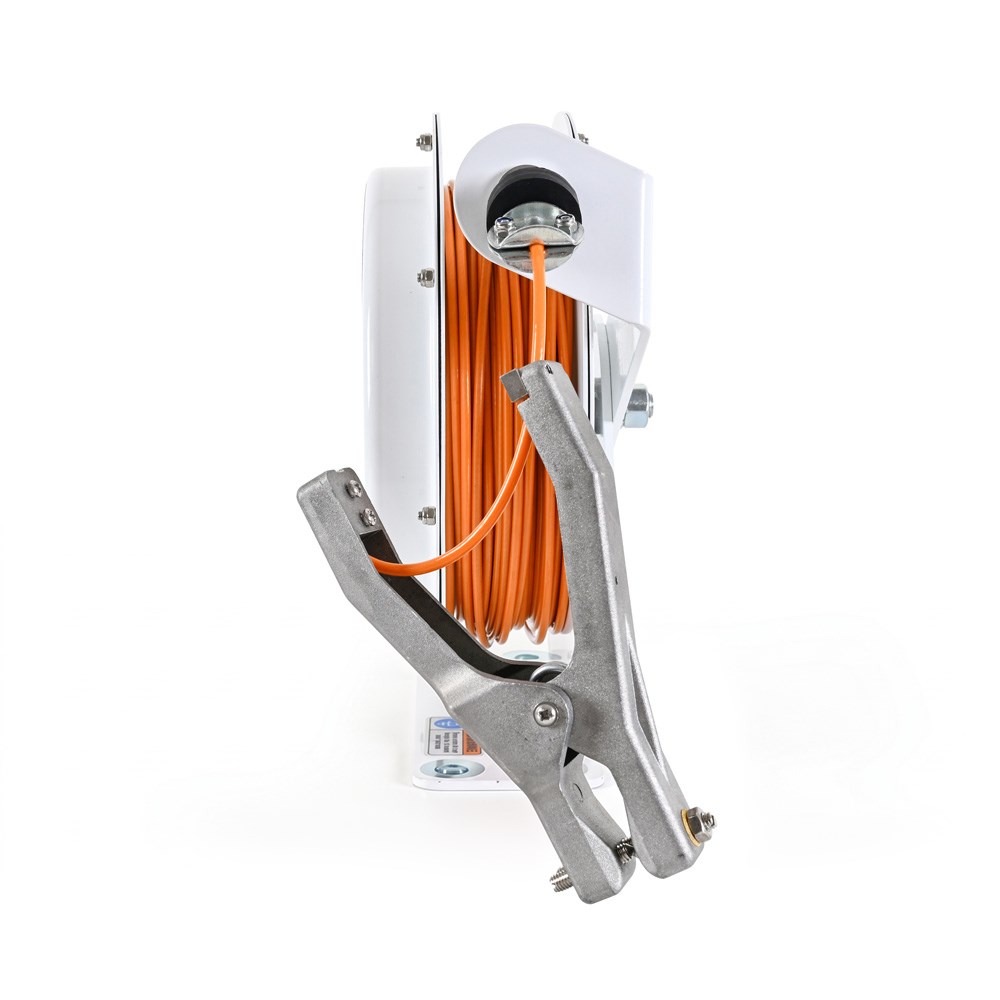

Static Grounding Reel - 25mm x 15m

Product Code: RSR2515O-P
Description

The Retracta Static Grounding Reel provides a grounding connection for equipment used during fuel transfer, chemical handling and other operations where static electricity may build up. Its 15m high visibility cable extends to the required working distance, locks in position and retracts slowly after use for better control.

  • Technical Specifications
  • Features & Benefits
  • Package Includes

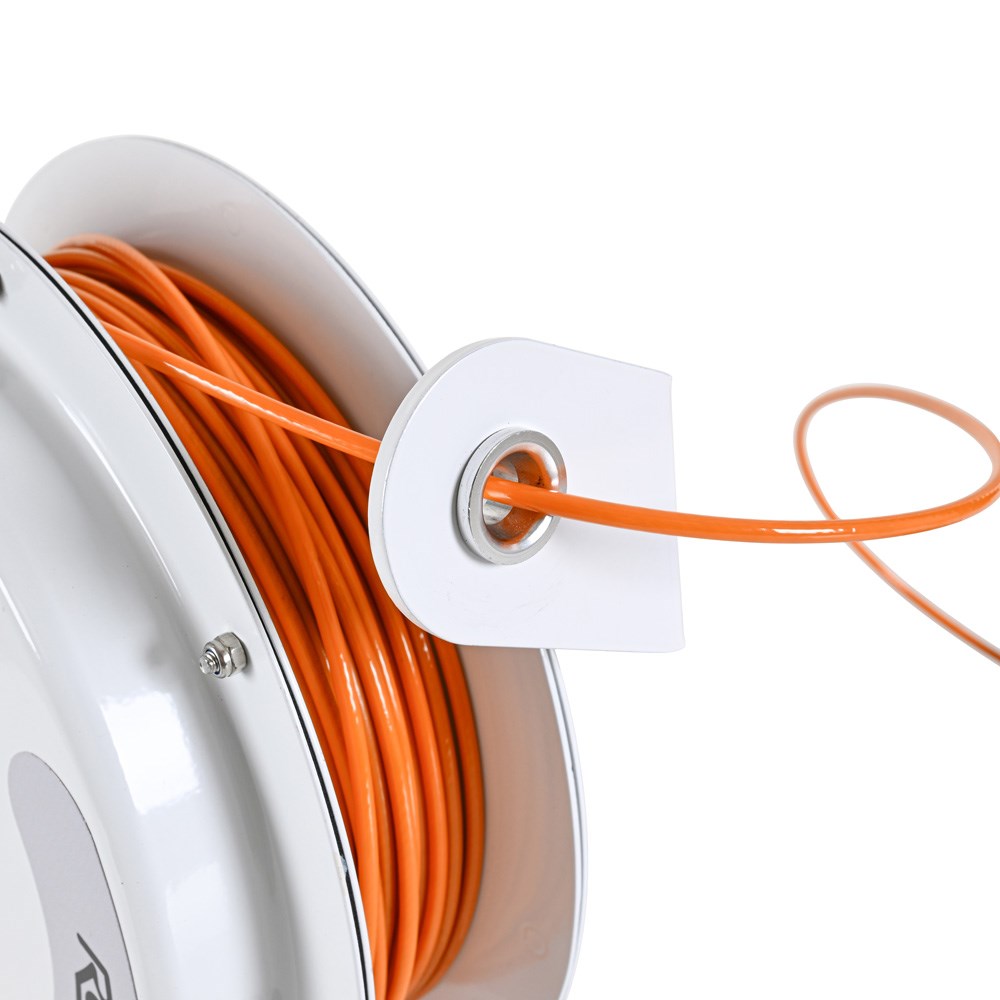

  • Cable Material: Flexible TPU coated steel cable
  • Steel Cable Diameter: 2.5mm (3/32”)
  • Outer Coating Diameter: 4.0mm (5/32”)
  • Cable Length: 15m (50ft)
  • Cable Colour: Orange
  • Clamp Type: Piercing static grounding clamp
  • Suggested Installation Height: ~2m (6.5ft)
  • Operating Temperature: Up to 52°C (126°F)
  • Retraction Type: Spring driven slow retraction
  • Product Weight: 7.3 Kg
  • 15m Working Reach: Gives you room to connect to a grounding point without handling a loose cable.
  • Automatic Spring Rewind: Retracts the cable after use, keeping the work area tidier.
  • Controlled Slow Return: Slows the cable as it retracts to help reduce whipping and sudden impact on the reel or clamp.
  • High-Visibility Orange Cable: Easier to spot and avoid the cable during work.

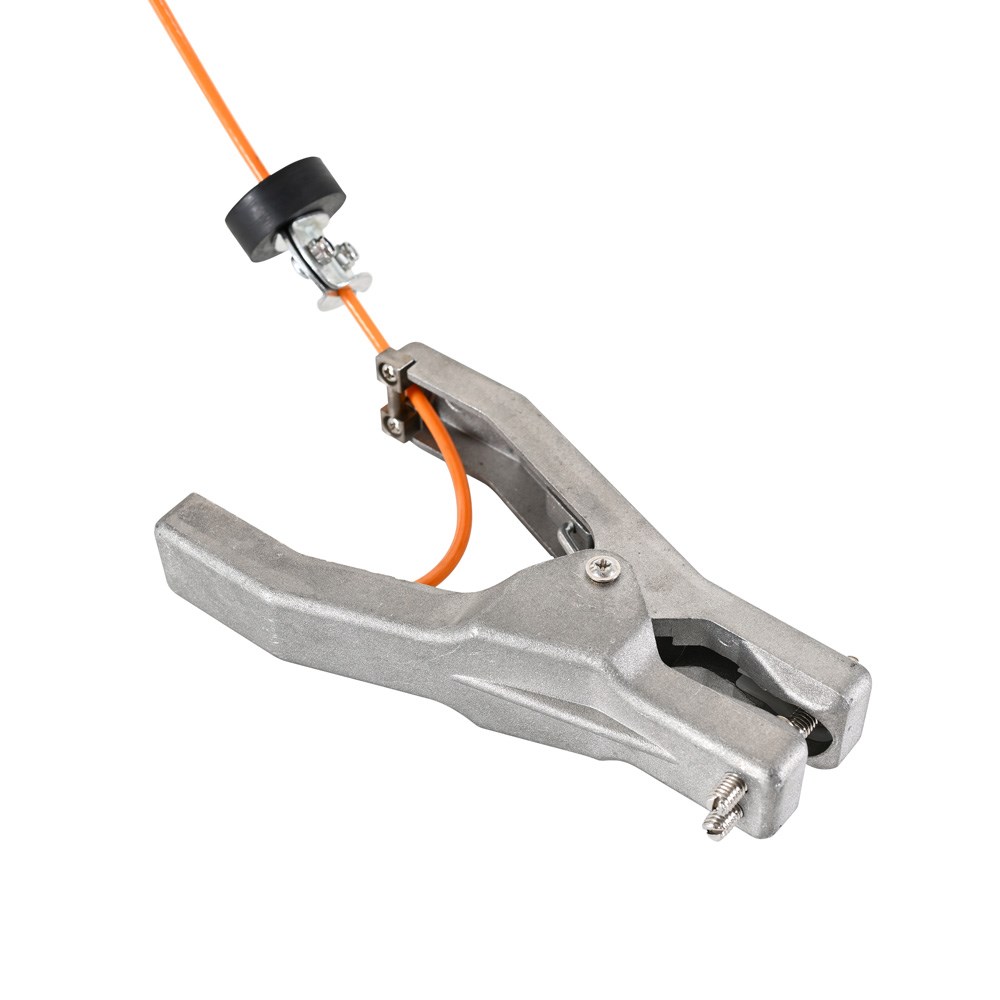

  • Piercing Grounding Clamp: Grips a suitable conductive grounding point. The piercing teeth help make contact through light surface contamination or coating.
  • Compact Reel Design: Fits into tight mounting space and stores the cable neatly when it’s not in use.
  • Powder-Coated Finish: Helps protect the steel reel body from everyday wear.
  • Static Grounding Reel x1
  • Instruction Manual QC Card x1
  • Mounting template: Printed on the box
