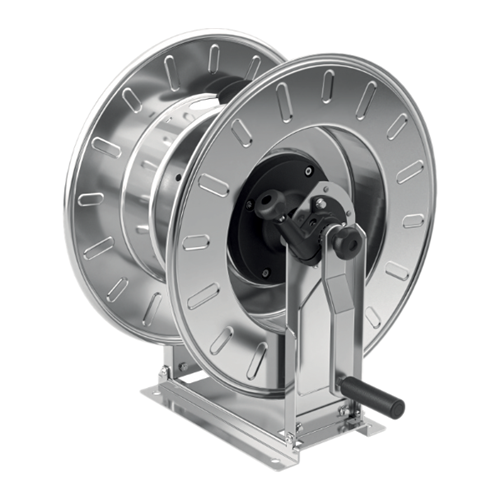

Y SERIES SY HOSE REEL -SS MAX 20M -INLET 1" BSPT (M) OUTLET 25MM BARB

Product Code: YSYA2520N-DL
Description
The Retracta Y Series hose reel range has been introduced to meet the demands of extreme environments where wash down hose reels are used. Designed with safety features from the ground up, the Y Series reels are made from high quality materials providing the ultimate durability.

Retracta Y Series SY stainless steel hand crank reel, foldable handle with safety system, swivel joint and adjustable clutch. 1/2" inlet/outlet, maximum 20m hose. Hose not included.
  • Technical Specifications
  • Features & Benefits
  • Package Includes
  • Optional Accessories
  • Recommended Use With
  • Material: Stainless Steel (AISI 304) / Nylon
  • Type: Air / Water 100°C / Diesel
  • Hose Inside Diameter: Not included
  • Hose Length: 20m
  • Hose Colour: Not included
  • Working Pressure: 290 psi
  • Maximum Temperature: 100°C
  • Feed Hose Inlet: Not included
  • Reel Inlet: 1" BSPT (F)
  • Reel Outlet: 25mm Barb (M)
  • Hose Outlet: Not included
  • Weight: 11kg
  • Safety handle system to prevent hazardous handle free spin
  • Foldable handle to prevent catching
  • Adjustable clutch for controlled unwinding
  • Stainless steel components for maximum durability
  • Viton-PTFE high quality seals
  • Accessible mounting points for quick and easy installation
  • Made in Italy for the highest quality
  • Optional  4 roller guide arm for easy winding
  • Optional rotational Locking Pin to prevent the hose accidentally unwinding
  • Twin pedestal ribbed design for maximum rigidity
  • Y Series SY Hose Reel
  • RA-RG-YSYA  Y Series SY Roller Guide Arm
  • RA-LP-YS  Y Series Rotational Locking Pin
  • RA-RG-YSYA  Y Series SY Roller Guide Arm
  • RA-LP-YS  Y Series Rotational Locking Pin
