MINILUBE® GREASING SYSTEM

Product Code: K7-67

Description

Product Overview

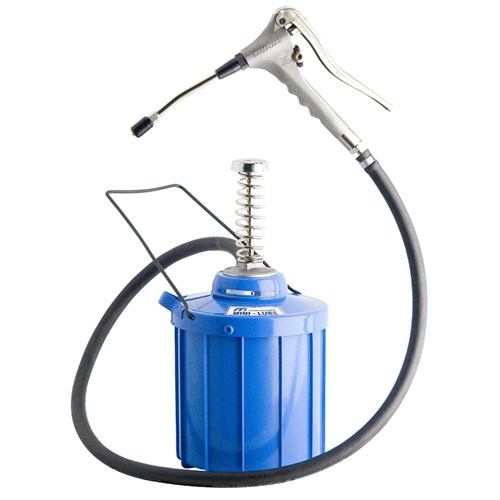

The K7-67 MINILUBE® (5kg model) is a portable High Pressure Manual Greasing System that provides high-volume/high-pressure greasing in a compact and portable package. The K7-67 comes with a KT6 5kg reusable container and consists of two main components, a foot operated spring-loaded pump, that dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR pressurite™ gun. When the gun is set on the high volume position the gun will deliver up to 5,000 psi and when set on the high pressure setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi). The K7-67 is an economical alternative to the more expensive air-operated greasing systems.

    • Technical Specifications
    • Features & Benefits
    • Package Includes
    • Optional Accessories
    • Repair Kits

    Technical Specifications

    • High volume delivery pressure up to 34,450kPa (5,000psi)
    • High pressure delivery pressure up to 68,900kPa (10,000psi)
    • Provides up to 30 shots of grease with each prime
    • KY SUPERGRIP™ 3 jaw high pressure coupler
    • Up to 0.45g per shot (High pressure setting)
    • Up to 1.25g per shot (High volume setting)
    • Maximum viscosity - Up to NLGI 2
    • Includes a KT6 reusable 5kg grease container for contamination free greasing or bulk fill via a J3 Transfer Pump
    • Wetted parts - Aluminium, steel, nitrile rubber
    • 1.5m Flexible delivery hose

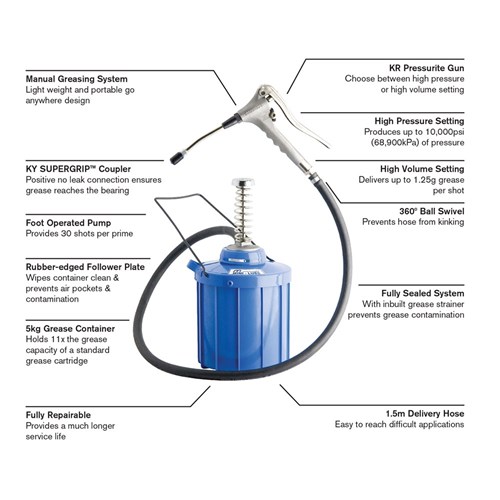

    Features & Benefits

    • Includes a KT6 5kg reusable container
    • Can be used as a backup for power operated systems - In case of a systems malfunction or breakdown eg. power failure.
    • Manual greasing system - Suitable for users who need a high-pressure greasing capability but don't have or can't use air-powered equipment.
    • Light weight and portable - Holds more grease than a conventional handgun so it can be easily transported to the application.
    • Up to 6 times the grease capacity of a cartridge - less down time changing grease cartridges
    • Self air bleeding system when first used - No air purging necessary when changing containers
    • Manually operated & light weight with carry handle - Portable go anywhere system.
    • 2 way KR patented Pressurite Gun - Two grease guns in one
    • High pressure / High volume switch - Can deliver up to 5,000psi on the high volume setting or 10,000psi on the high pressure setting
    • Pressurite gun offers high volume greasing up to 5,000psi - High volume greasing offers superior performance compared to hand held manual grease guns
    • Pressurite gun offers high pressure greasing up to 10,000psi - Air operated performance, clears blocked or damaged grease nipples
    • Fully sealed greasing system - Clean grease to the bearing every time
    • Handles most greases up to NLGI No.2 viscosity - Versatility of use
    • Easy push-down foot operated, spring loaded pump - Provides 30 shots at the gun, no pressure developed in container, allows one-handed operation
    • Rubber edged follower plate - Wipes container clean to use all of the grease in the container, prevents air pockets and contamination
    • KY Supergrip™ Coupler - Positive, no leak connection. Ensures grease gets to the bearing
    • Inbuilt grease strainer - Ensures clean grease to the bearing
    • Fully repairable - Provides a longer service life
    • 1.5m grease delivery hose - Easy to reach difficult applications, transfer only / Maximum 280psi
    • 360° swivel to gun - Prevents hose kinking / twisting. Easy one handed operation
    • Range of push-on / quick release greasing accessories available - Increased versatility / flexibility for dif- ferent applications

    Package Includes

    • K7 MINILUBE® Portable Greasing system
    • KR PRESSURITE gun
    • 1.5m Flexible delivery hose
    • Follower plate
    • KT6 reusable 5kg grease container

    Recommended to be used with

    • The K7-01 MINILUBE® does not include a 2.5kg container
    • The K7-24 comes with a 2.5kg container
    • The K7-67 comes with a 5kg container

    Repair Kits

    • K7-2K: Top Assembly
    • K7-3K: Seal Kit
    • KH40S: Hose Assembly
    10 year
