FLEXIGUN 450G GREASE GUN, UNDERGROUND MINING

Product Code: K29-01-11

Description

Product Overview

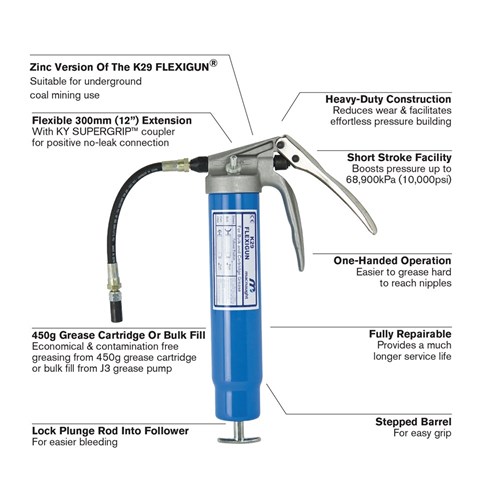

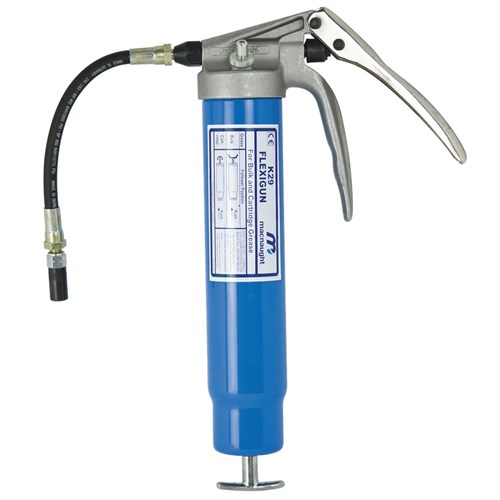

This Zinc model of the classic K29 FLEXIGUN® is designed for use in underground mines. The K29 FLEXIGUN® is a classic grease gun that incorporates a unique variable stroke piston and valve arrangement for true one handed operation. The push in handle is easy to use and requires much less effort to operate. Increased pressure can be produced by short strokes (low volume) or high volume using a long stroke (low pressure). Heavy duty pistol grip construction with comfortable ergonomics to suit 450g grease cartridges, bulk filling or Macnaught J3 grease transfer pump loading. The K29 is fully repairable with a strong die cast head and heavy gauge steel barrel for extra long service life.


    • Technical Specifications
    • Features & Benefits
    • Package Includes
    • Optional Accessories
    • Repair Kits

    Technical Specifications

    • Zinc construction suitable for use underground
    • Delivery pressure up to 68,900kPa (10,000psi)
    • Flexible 230mm (9") high pressure extension hose
    • KY SUPERGRIP™ 3 jaw high pressure coupler
    • Up to 0.68g per shot
    • Heavy-duty 1.6mm thick barrel
    • Robust zinc pull handle
    • Wetted parts - Zinc, steel, nitrile rubber, cork and nylon
    • Maximum viscosity - Up to NLGI 2
    • Compatible with 450g cartridges for contamination free greasing


    Features & Benefits

    • Zinc version of the K29 - Suitable for use underground
    • Can be filled from a bulk supply of grease - Economical & contamination free greasing
    • 9mm diameter hand operated Filler / Bleeder Outlet - For use with Macnaught J3 grease pump or any other 9mm bulk fill grease pump
    • Reversible follower - Cartridge or bulk applications
    • Lock the plunge rod into the follower - For easier bleeding
    • Machined barrel thread - Makes it easier to screw the barrel to the head
    • Stepped Barrel - For easy grip
    • Heavy-duty design and construction - Reduces wear & facilitates effortless pressure building
    • Short stroke facility - Ability to boost greasing pressure using shorter hand strokes to easily clear blocked grease nipples
    • Screw fasteners - No rivets for easy servicing
    • Pistol grip and unique piston and valve arrangement - Easy one handed operation
    • Flexible high pressure extension hose - Easier to grease hard to reach nipples
    • Fully repairable - Provides a much longer service life
    • Supergrip KY coupler - Positive no leak connection ensures grease gets to the bearing.


    Package Includes

    • K29 FLEXIGUN® 450g Zinc Grease Gun
    • Flexible 230mm (9") high pressure extension hose
    • KY SUPERGRIP™ 3 jaw high pressure coupler

    Recommended to be used with

    • KY SUPERGRIP™ 3 jaw high pressure coupler

    Repair Kits

    • K29-1K: Service Kit
    • K27-2K: Follower Kit (450g)
