Air Operated Diaphragm Pump - 3/4" Viton

Product Code: L-DDP19V

Im l ddp instruction manual
L-DDP19V Product Sheet

Description

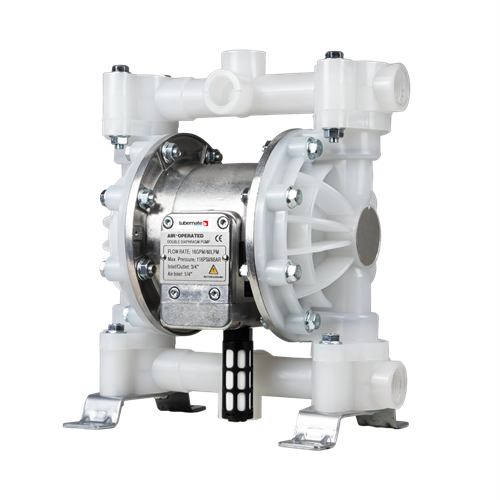

Elevate your fluid handling game with the Lubemate 3/4” Viton Air Operated Diaphragm Pump. This self-priming double diaphragm pump, is portable and simple to install. Suitable to use with diesel, kerosene, light oils with viscosity less than 500CST, UREA/DEF and chemicals with mild acids and mild bases.

Technical Specifications
Features & Benefits
Package Includes

Inlet/outlet : 3/4" BSP
Flow Rate: upto 60LPM
Air Inlet: 1/4" BSP
Max Pressure : 115 PSI
Wetted Components: Polypropylene and NBR

Heavy Duty aluminium construction.
Included ground capability to eliminate static discharge
Self Priming Double Diaphragm Pump.
Suitable to use with Diesel, Kerosene, light oil with viscosity less than 500CST.
Ability to run dry.
Variable flow rate and discharge pressure.
Portable and simple installation.
Constant Pumping efficiency.
