Description

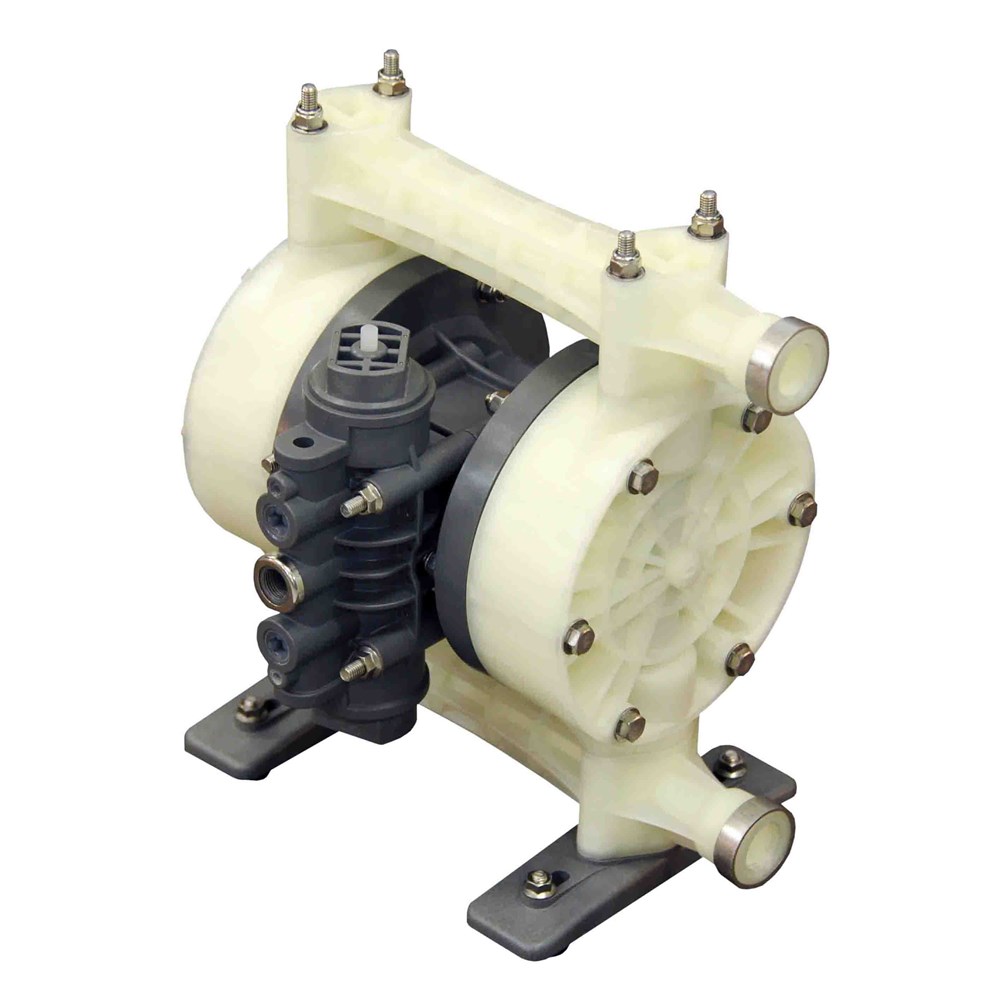

Experience the next level of fluid transfer efficiency with our Max Flow Series Double Diaphragm Pumps. Made in Japan for precision and durability, these pumps operate at a 1:1 ratio with a 130 LPM flow rate, making them ideal for high-volume, low air consumption across industries. Dependable, low-maintenance, and versatile. They are designed to keep your operations running smoothly.

  • Technical Specifications
  • Features & Benefits
  • Package Includes
  • Max air pressure: 20 to100 PSI or 1.37 to 6.89 bars
  • Port Definition: Side Port
  • Inlet/outlet: 3/4" BSPT (F)
  • Air inlet: 1/4" BSPT (F)
  • Max flow rate: 130 LPM ( 35 GPM)
  • Suction lift : 3m (dry)
  • Suction lift: 8m (Wet)
  • Max solids handling: 2mm
  • Fluid temperature: 0ºC – 60ºC & (32ºF - 140ºF)
  • Wetted Parts (Diaphragm/Balls/Seats): PPG, NBR
  • Height: 36.8cm, Width: 31.4cm, Depth: 37.3cm
  • Air Motor: PPG
  • Optimized Flow: Lighter spool ensures faster, smoother operation.
  • Effortless Maintenance: Easily accessible air motor for quick and hassle-free servicing.
  • Dry-Run Safe: No overheating, runs without liquid.
  • Deadhead Resistant: Withstands closed discharge without damage.
  • Self-Priming: Eliminates the need for manual priming.
  • No inline lubrication required: Reduces maintenance and operational costs.
  • Diaphragm: Nitrile Buna-N (NBR).
  • Pump Wetted Parts: Glass-Filled Polypropylene (PPG) and Nitrile Buna-N (NBR).
  • Convenient Side Port: Easy access for streamlined installation and flexible piping.
  • Airline ball valve x 1
  • Liquid Inlet/Outlet Plug x 4
