Description

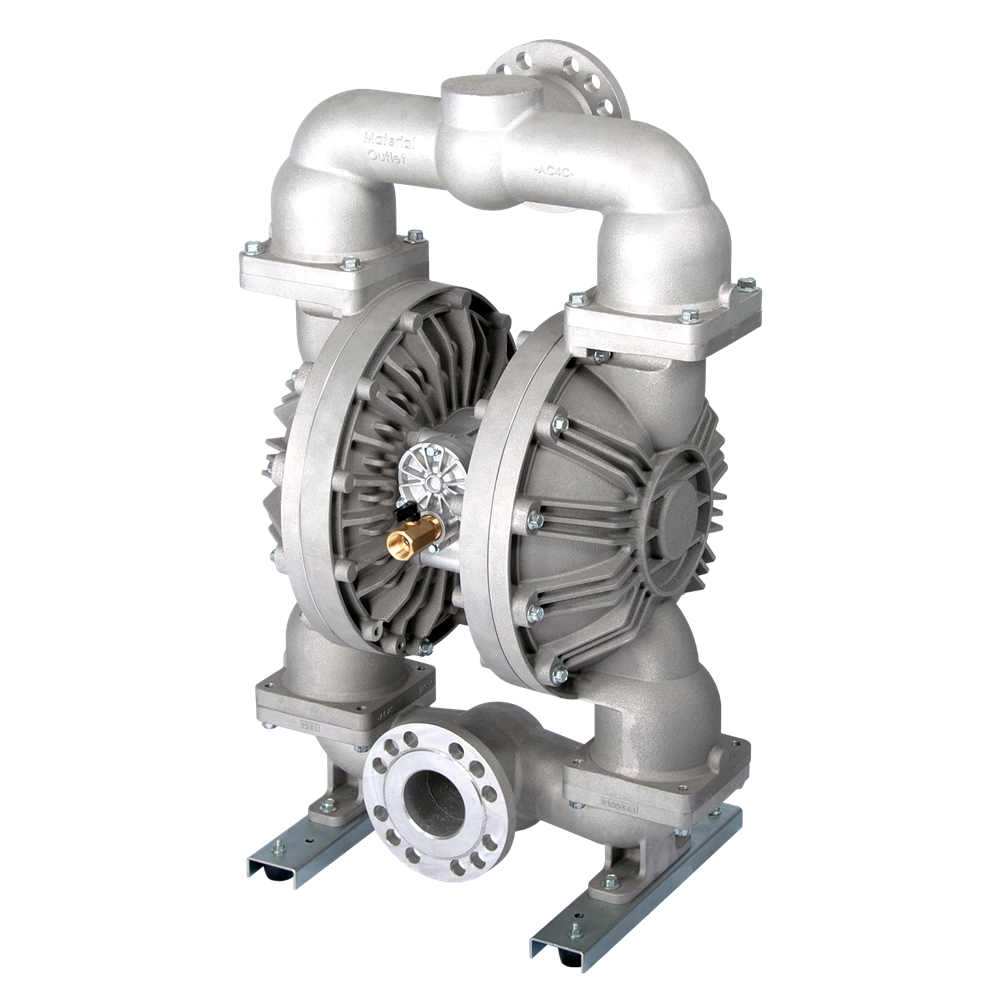

Experience the next level of fluid transfer efficiency with our Max Flow Series Double Diaphragm Pumps.Made in Japan for precision and durability, these pumps operate at a 1:1 ratio with a 1050 LPM flow rate, making them ideal for high-volume, low air consumption across industries. Dependable, low-maintenance and versatile. They are designed to keep your operations running smoothly.

  • Technical Specifications
  • Features & Benefits
  • Package Includes
  • Max air pressure: 20 to 101 PSI or 1.37 to 6.96 bar
  • Port Definition: Center Port
  • Inlet/outlet: 3" BSPT (F) & 3" DIN
  • Air inlet: 3/4" BSPT (F)
  • Max flow rate: 1050 LPM ( 277 GPM )
  • Suction lift : 5.5m (dry)
  • Suction lift: 8m (Wet)
  • Max solids handling: 10mm
  • Fluid temperature: 0ºC – 70ºC & (32ºF - 158ºF)
  • Wetted Parts (Diaphragm/Balls/Seats): Aluminium, SUS (Cast Iron), NBR
  • Height: 91.2cm, Width: 56cm, Depth: 38cm
  • Air Motor: Aluminum
  • Optimized Flow: Lighter spool ensures faster, smoother operation.
  • Effortless Maintenance: Easily accessible air motor for quick and hassle-free servicing.
  • Dry-Run Safe: No overheating, runs without liquid.
  • Deadhead Resistant: Withstands closed discharge without damage.
  • Self-Priming: Eliminates the need for manual priming.
  • Runs Without Lubrication: No inline lubricator required, ensuring clean and low-maintenance performance.
  • Diaphragm: Nitrile Buna-N (NBR).
  • Pump Wetted Parts: Aluminium and Nitrile Buna-N (NBR).
  • Threaded Flange Manifolds: Provides a wider option of both flange and threaded connection availability.
  • Airline ball valve x 1
  • Liquid Inlet/Outlet Plug x 4
