Air Operated Diaphragm Pump -1/2"
Zoom

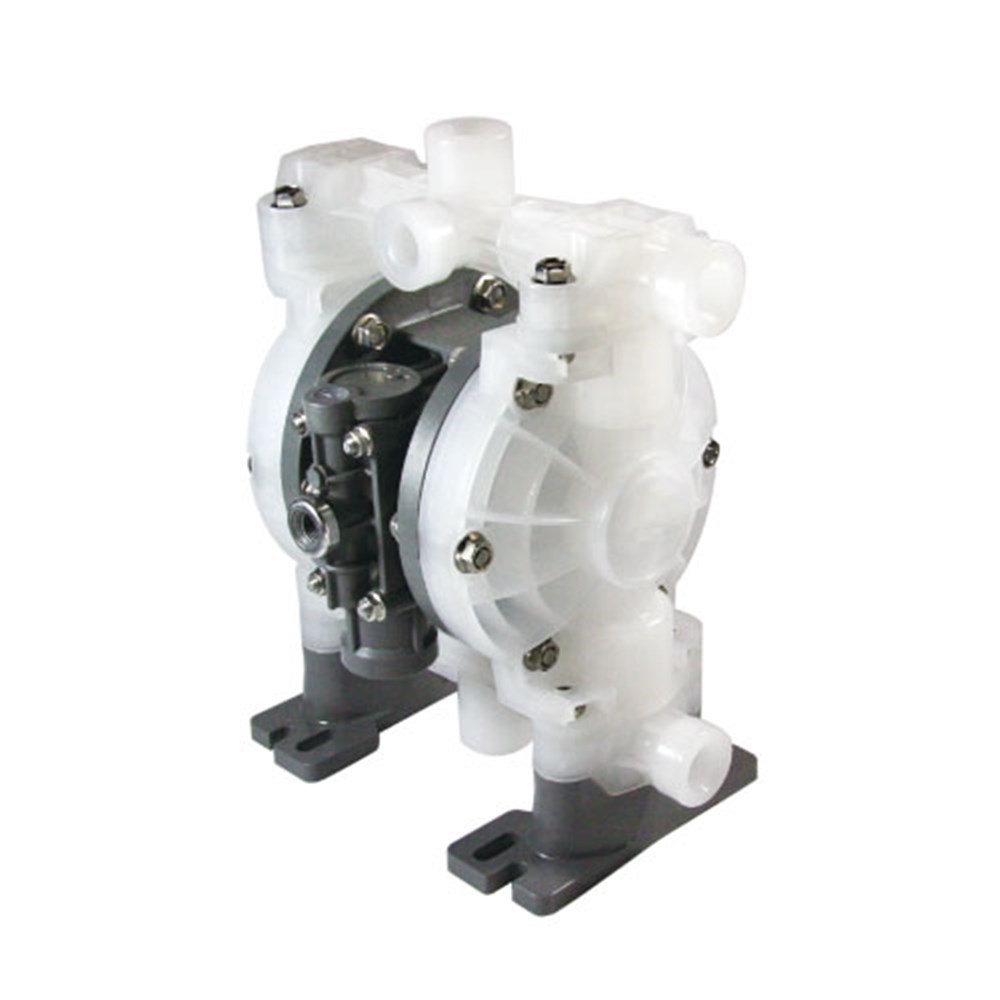

Air Operated Diaphragm Pump -1/2"
Product Code: M-DDP13PN-01
Product Sheet for M-DDP13PN-01
Chemical Compatibility Chart
Instruction Manual Max Flow Series Diaphragm Pumps
Description
Air Operated Double Diaphragm Pump 1/2"
Technical Specifications
Features & Benefits
Package Includes
Max air pressure: 20 to100 PSI or 1.37 to 6.89 bars
Port Definition: Multiport
Inlet/outlet: 1/2" BSPT (F)
Air inlet: 1/4" BSPT (F)
Max flow rate: 62 LPM ( 16 GPM)
Suction lift : 2m (dry)
Suction lift: 8m (Wet)
Max solids handling: 1 mm
Fluid temperature: 0ºC – 60ºC & (32ºF - 140ºF)
Wetted Parts (Diaphragm/Balls/Seats): PP, NBR
Height: 29.5cm, Width: 22.8cm, Depth: 17.4cm
Air Motor: PP, NBR
Optimized Flow: Lighter spool ensures faster, smoother operation.
Effortless Maintenance: Easily accessible air motor for quick and hassle-free servicing.
Dry-Run Safe: No overheating, runs without liquid.
Deadhead Resistant: Withstands closed discharge without damage.
Self-Priming: Eliminates the need for manual priming.
No inline lubrication required: Reduces maintenance and operational costs.
Diaphragm: Nitrile Buna-N (NBR).
Pump Wetted Parts: Polypropylene(PP),Nitrile Buna-N (NBR).
Multi Port: Versatile multiport design for flexible installation and enhanced efficiency.
1 unit of Diaphragm Pump
Warranty Information
