Air Operated Diaphragm Pump - 1 1/2"
Zoom

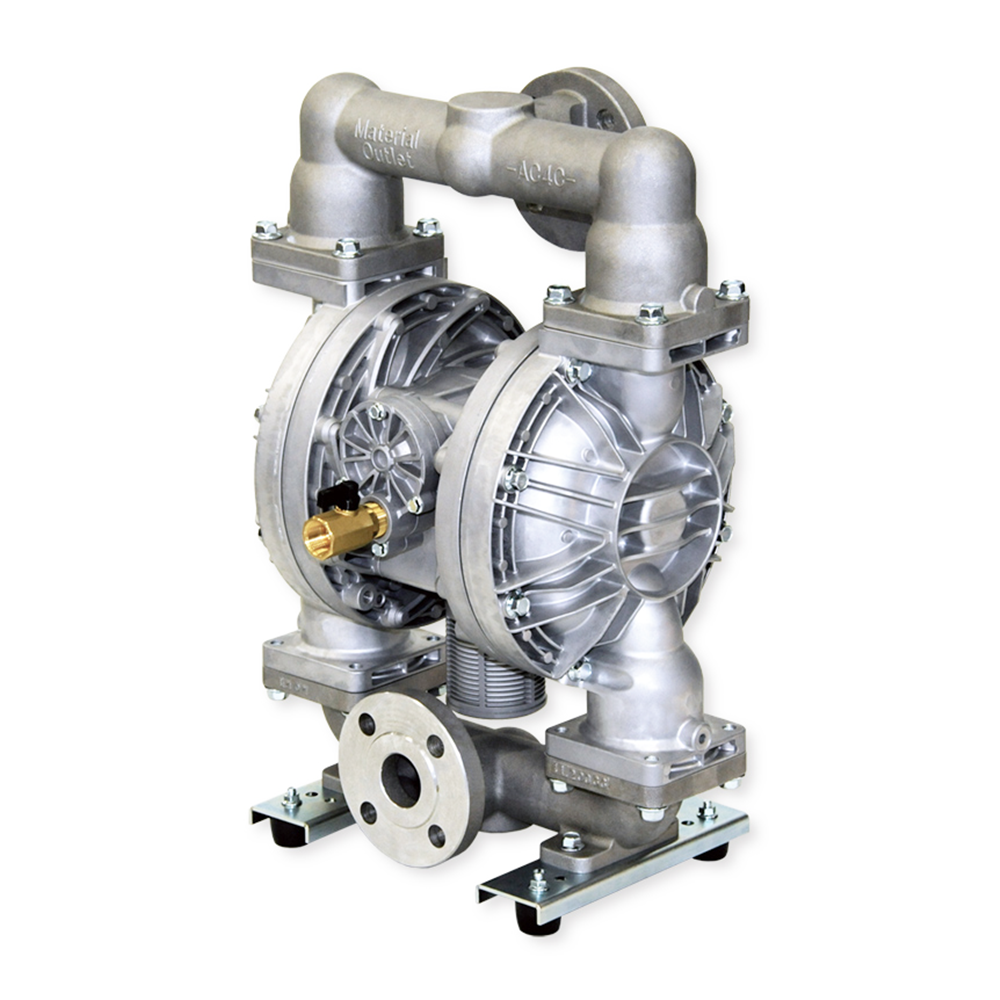

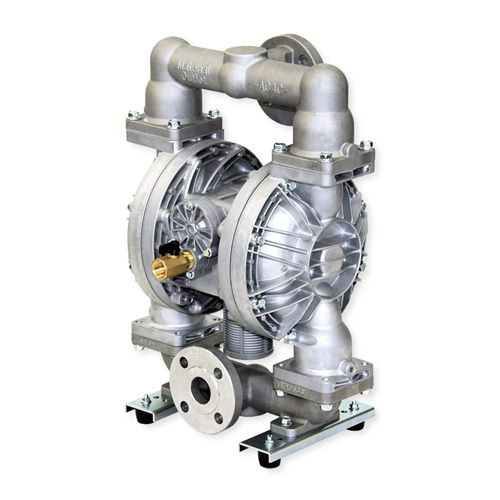

Air Operated Diaphragm Pump - 1 1/2"
Product Code: M-DDP38AN-01
Product Data Sheet for M-DDP38AN-01
Chemical Compatibility Chart
Instruction Manual Max Flow Series Diaphragm Pumps
Description
Air Operated Double Diaphragm Pump 1 1/2"
Technical Specifications
Features & Benefits
Package Includes
Max air pressure: 20 to 101 PSI or 1.37 to 6.96 bar
Port Definition: Center Port
Inlet/outlet: 1½" BSPT (F) & 1½" DIN
Air inlet: 3/4" BSPT (F)
Max flow rate: 600LPM (158 GPM)
Suction lift : 5.5m (dry)
Suction lift: 8m (Wet)
Max solids handling: 8mm
Fluid temperature: 0ºC – 70ºC & (32ºF - 158ºF)
Wetted Parts (Diaphragm/Balls/Seats): Aluminium, SUS (Cast Iron), NBR
Height: 60.1cm, Width: 42.4cm, Depth: 33.5cm
Air Motor: Aluminum
Handles Slurries: Transfers high-viscosity, abrasive slurries.
Effortless Maintenance: Easily accessible air motor for quick and hassle-free servicing.
Dry-Run Safe: No overheating, runs without liquid.
Deadhead Resistant: Withstands closed discharge without damage.
Self-Priming: Eliminates the need for manual priming.
No inline lubrication required: Reduces maintenance and operational costs.
Diaphragm: Nitrile Buna-N (NBR).
Pump Wetted Parts: Aluminium and Nitrile Buna-N (NBR).
Threaded Flange Manifolds: Provides a wider option of both flange and threaded connection availability.
1 unit of Diaphragm Pump
Warranty Information
