Description

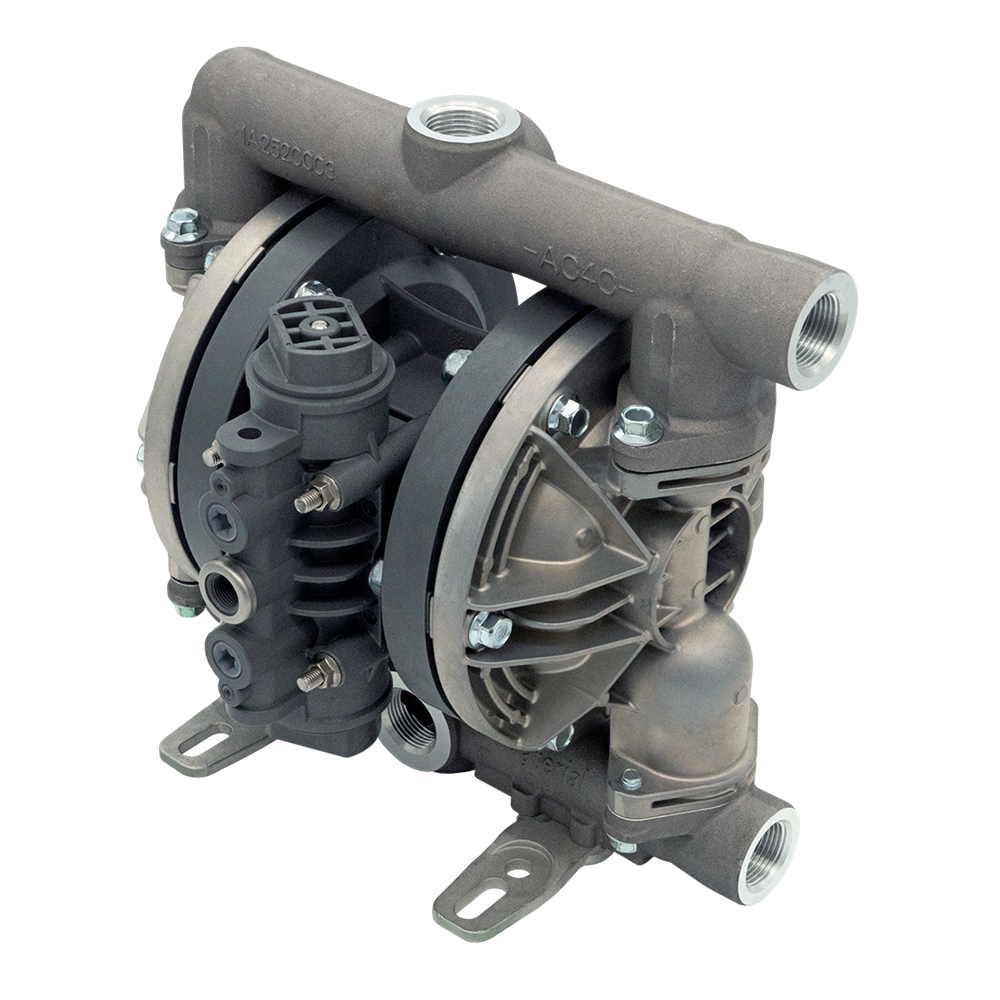

Air Operated Double Diaphragm Pump 1"

  • Technical Specifications
  • Features & Benefits
  • Package Includes
  • Max air pressure: 20 to 101 PSI or 1.37 to 6.96 bar,
  • Port Definition: Multiport
  • Inlet/outlet: 1" BSPT (F)
  • Air inlet: 3/8" BSPT (F)
  • Max flow rate: 220 LPM (58 GPM)
  • Suction lift : 4.5m (dry)
  • Suction lift: 8m (Wet)
  • Max solids handling: 3mm
  • Fluid temperature: 0ºC – 70ºC & (32ºF - 140ºF)
  • Wetted Parts (Diaphragm/Balls/Seats): Aluminium, SUS (Cast Iron), NBR
  • Height: 32.8cm, Width: 35.3cm, Depth: 37.5cm
  • Air Motor: Aluminum
  • Optimized Flow: Lighter spool ensures faster, smoother operation.
  • Effortless Maintenance: Easily accessible air motor for quick and hassle-free servicing.
  • Dry-Run Safe: No overheating, runs without liquid.
  • Deadhead Resistant: Withstands closed discharge without damage.
  • Self-Priming: Eliminates the need for manual priming.
  • No inline lubrication required: Reduces maintenance and operational costs.
  • Diaphragm: NBR (Nitrile Buna-N)
  • Pump Wetted Parts: Aluminium and Nitrile Buna-N (NBR).
  • Multi Port: Versatile multiport design for flexible installation and enhanced efficiency.
  • 1 unit of Diaphragm Pump
