Description

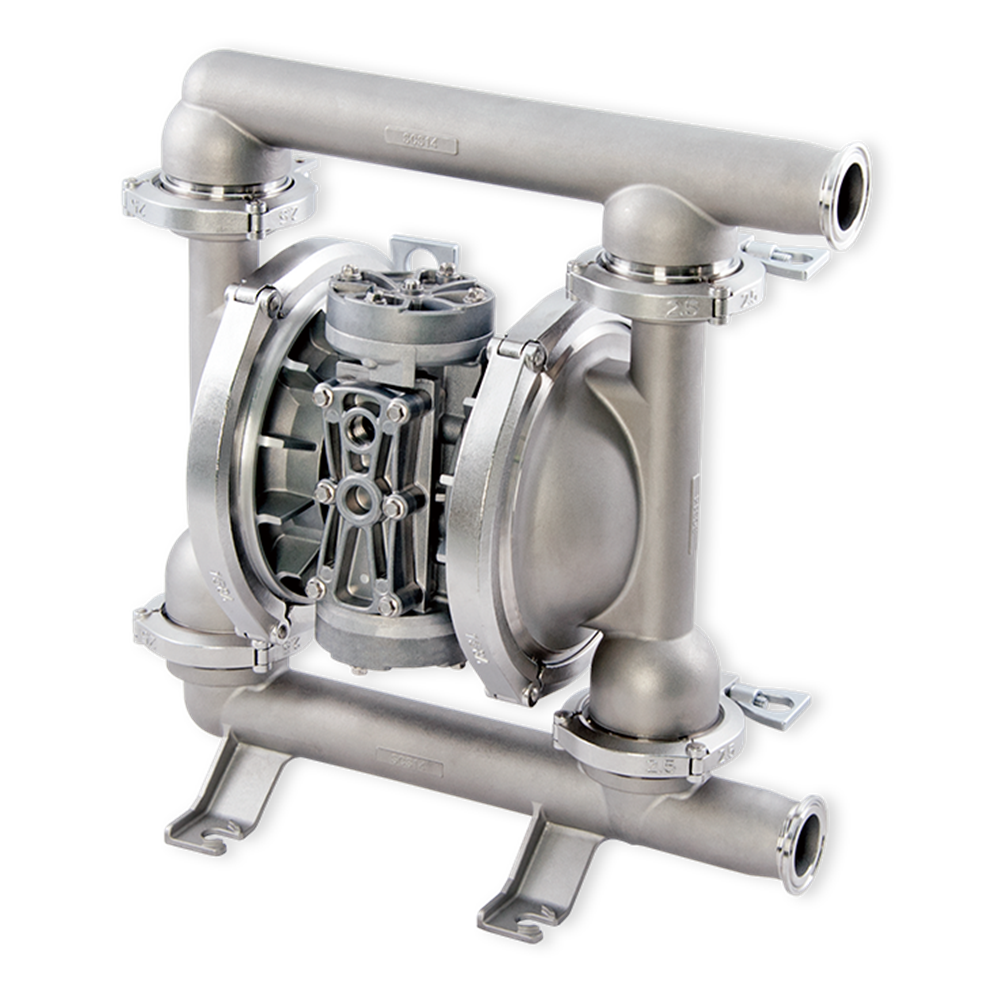

Experience the next level of fluid transfer efficiency with our Max Flow Series Double Diaphragm Pumps. Made in Japan for precision and durability,This FDA Compliant Air Operated  Diaphragm Pump operates at 180 LPM flow rate, making them ideal for high-volume, low air consumption across industries. Dependable, low-maintenance, and versatile. They are designed to keep your operations running smoothly.

  • Technical Specifications
  • Features & Benefits
  • Package Includes
  • Max air pressure: 29 to 100 PSI or 2 to 7 bar
  • Port Definition: Side Port
  • Inlet/outlet: Ferrule 1 .5s
  • Air inlet: 3/8" BSPT (F)
  • Max flow rate: 180 LPM ( 48 GPM )
  • Suction lift : 3.5 (dry)
  • Suction lift: 8m (Wet)
  • Max solids handling: 3 mm
  • Fluid temperature: 0ºC – 70ºC & (32ºF - 158ºF)
  • Wetted Parts (Diaphragm/Balls/Seats): PTFE / EPDM
  • Height: 41.1cm, Width: 41.1cm, Depth: 28.6cm
  • Air Motor: Aluminum
  • Superior Sealability: Designed to prevent leaks and maintain hygiene standards.
  • Effortless Maintenance: Easily accessible air motor for quick and hassle-free servicing.
  • Dry-Run Safe: No overheating, runs without liquid.
  • Deadhead Resistant: Withstands closed discharge without damage.
  • Self-Priming: Eliminates the need for manual priming.
  • No inline lubrication required: Reduces maintenance and operational costs.
  • Diaphragm: PTFE·EPDM.
  • Pump Wetted Parts: Stainless Steel and PTFE.
  • Clamped with Ferrule Connections: Clamped mounting structure enables pumps to be easily serviced.
  • Airline ball valve x 1
  • Liquid Inlet/Outlet Plug x 4
