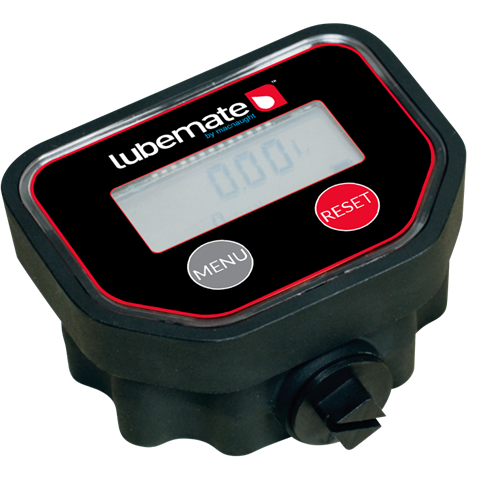

DIGITAL OIL METER - 1/2" 1,500psi

Product Code: L-DOM35-01


The new L-DOM35-01 digital oval gear oil meter from Lubemate has been designed to reliably dispense engine oil, gear oil, transmission fluid & premix automotive coolants. The L-DOM35-01 has a maximum working pressure up to 1,500psi and is suitable for most medium to high pressure applications. The highly accurate 5 digit display allows for easy reading & accountability across metric & imperial units.

  • Technical Specifications
  • Features & Benefits
  • Recommended Use With

Technical Specifications

  • Inlet/outlet: 1/2" BSP (F)
  • Flow range: 1-35LPM
  • Accuracy: +/- 0.5%
  • Max pressure up to 10,000kPa (1,500psi)
  • No spare parts available

Features & Benefits

  • High accuracy digital oil meter:  5 digit easy to read, resettable LCD display
  • Variable measurement units: can be set to display in litres, gallons, pints & quarts
  • Heavy duty construction: makes it suitable to use on a wide range of pumps

Recommended Use With

  • Suitable for oils up to SAE140, engine oils, gear oils, ATF, hydraulic oils and premixed coolants
