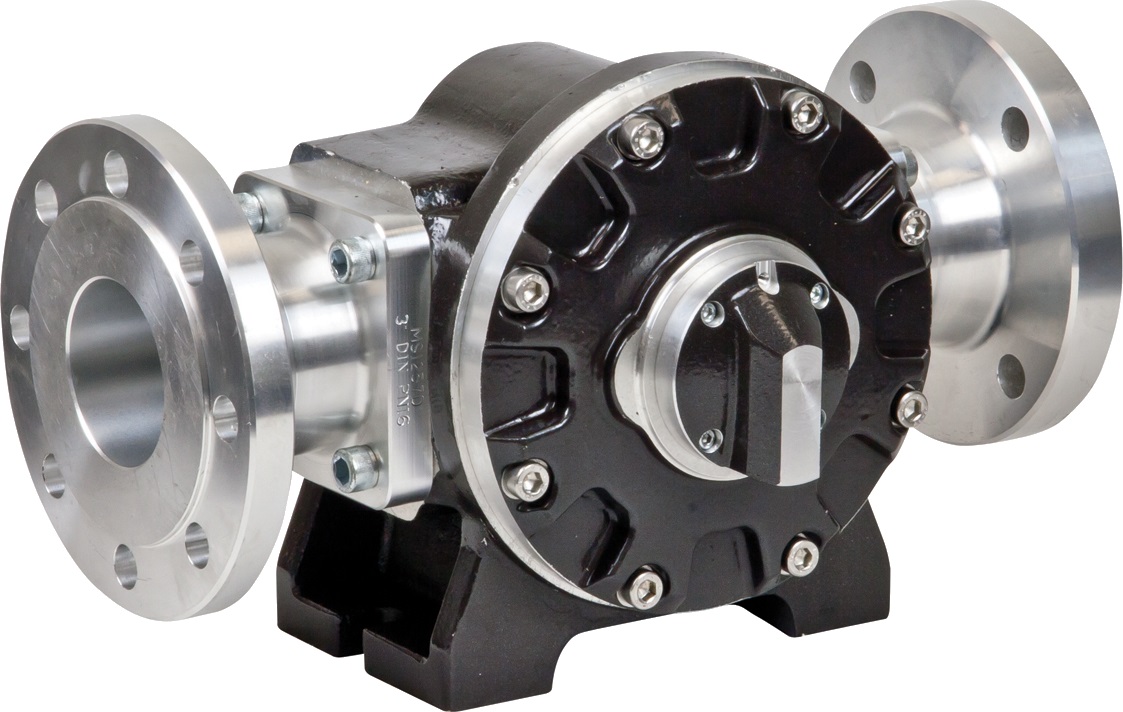

3" CUSTODY TRANSFERMETER with Pulse Output

Product Code: WM80AAP-1C
Description
The WM Series 3" CUSTODY TRANSFERMETER are suitable for flows between 140 - 700 L/min (36.98 - 184.92 GPM), providing highly accurate flow measurement performance. The WM Series offers ±0.50% accuracy of true reading in a compact footprint, requiring no flow conditioning and with high pressure and temperature capabilities.

Key features include:
  • Cast Aluminium construction
  • FKM (Viton) seals
  • Maximum flow rate 700 L/min / 184.92 GPM
  • Accuracy of ±0.50% of reading
  • Exceptional repeatability of ±0.03%
  • Temperature up to 120 °C / 248 °F
  • 1 point factory calibration as standard, with additional points upon request

Specifications

WM80AAP-1C
Material of construction
Cast Aluminium Aluminium (6061) FKM (Viton)
Design Specifications

3" Rp Thread
Technical Specifications
min
max

140 700 L/min
36.98 184.92 GPM
140 700 L/min
36.98 184.92 GPM
- 700 L/min
- 184.92 GPM
-40 120 °C
-40 248 °F
0.50% 0.03% 2.58 Pulses/Litre 9.77 Pulses/Gallon
Reed/Reed
Construction
 -
IP Rating
 -
Temp
Min: - Max: - °C Min: - Max: - °F
EX Approvals
 - Please refer to instruction manual and certification documentation for product appropriate certification information
Display
-mm/-mm
Outputs
Technical Specifications
Materials of Construction Aluminium / Aluminium / FKM
Port Connection Rp Thread
Rotor Type Standard
Output Type Reed/Reed
Port Size and Flow Rate 3"                       140 - 700 L/min [37.0 - 184.9 GPM]
Accumulated total -
Body material Cast Aluminium
Category (Meter / Rotor /Seal) Aluminium / Aluminium / FKM
Imperial Max Flow Rate (<5cP) 184.9204367
Imperial Max Flow Rate (>5cP) 184.9204367
Imperial Min Flow rate (<5cp) 36.98408733
Imperial Min Flow Rate (>5cP) 36.98408733
Imperial Min Non-Lubricating Flow Rate -
Imperial Units GPM
IP Rating -
Lower LCD -
Max pressure (bar) 12.06583
Max pressure (psi) 175
Meter Name 3" CUSTODY TRANSFERMETER
Meter Temperature max ( C) 120
Meter Temperature max ( F) 248
Meter Temperature min ( C) -40
Meter Temperature min ( F) -40
Metric Max Flow Rate (<5cP) 700
Metric Max Flow Rate (>5cP) 700
Metric Min Flow Rate (<5cp) 140
Metric Min Flow Rate (>5cP) 140
Metric Min Non-Lubricating Flow Rate -
Metric Units L/min
nominal K-factor (PPG) 9.769026884
nominal K-factor (PPL) 2.58
output - batch control function -
output - flow alarm -
output - pulse/transistor 3" CUSTODY TRANSFERMETER + Reed
Output Construction -
Output EX Approvals -
Output max temp (F) -
Output max temperature ( C) -
Output min temp (F) -
Output Min temperature ( C) -
Output Name Pulse Output
Output Signal 1 Reed
Output Signal 2 Reed
Output- 4-20mA -
Port Connections Rp Thread
preset total -
resettable total -
rotor material Aluminium (6061)
Series WM Series
Threaded Port Adaptor (Separately) N
Upper LCD -
Accuracy 0.005
repeatability 0.0003
bushing Carbon
Port Size 3"
