  • 2" DIGITAL FLOW METER with ERA DISPLAY

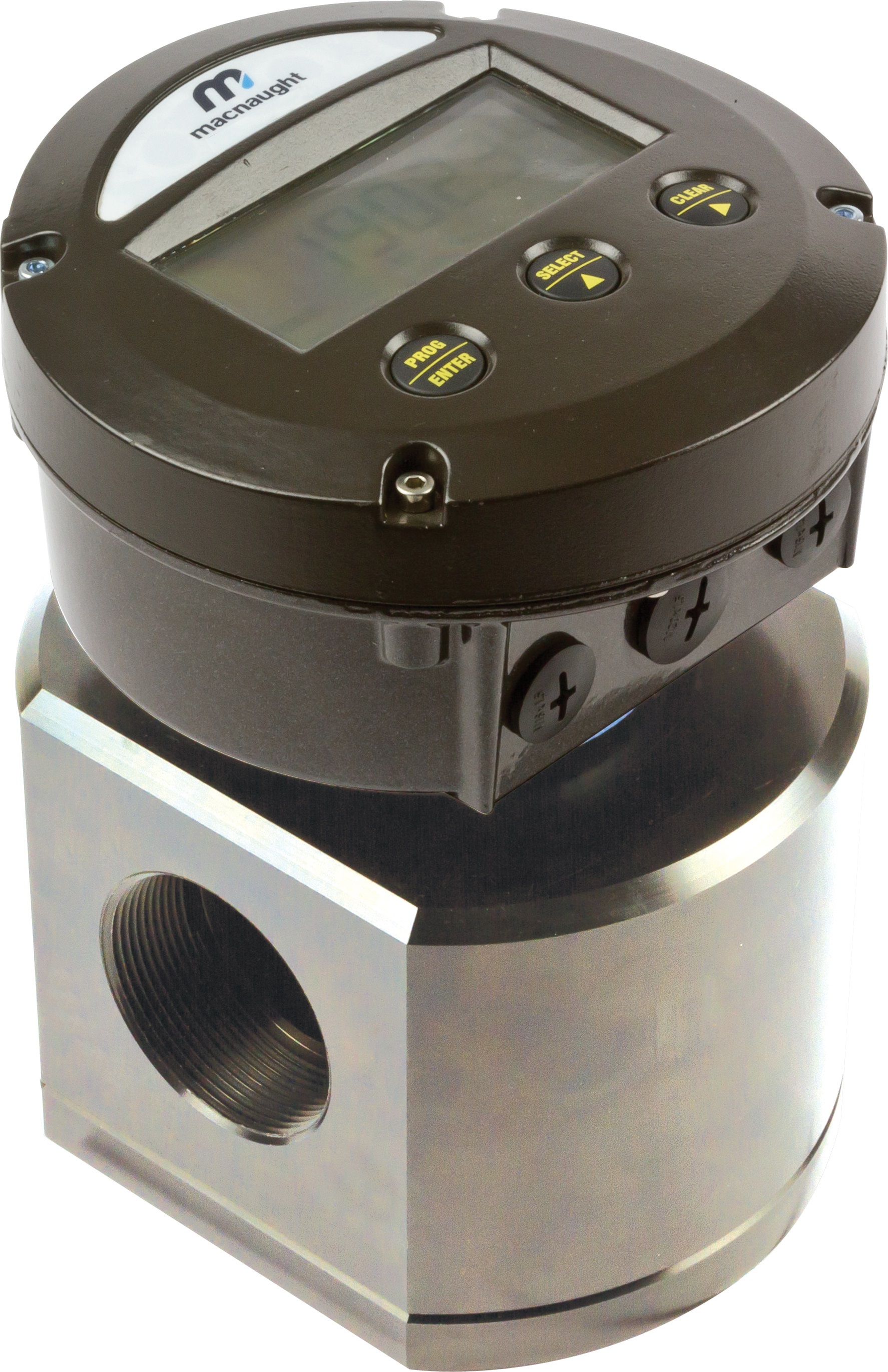

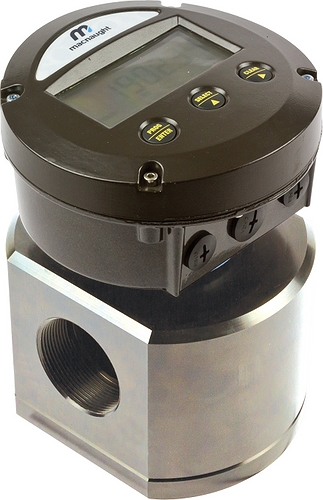

2" DIGITAL FLOW METER with ERA DISPLAY

ERA Digital Register (MX50P-5VG)
Description
2" Oval gear flow meter designed for a broad range of Industrial Process applications.
• Stainless Steel construction
• FEP - Teflon® encapsulated seals
• Max flow rate 500 LPM / 130 GPM
• Temperatures up to 150°C
• Accuracy +/- 0.5% (0.25% available)
• Available with BSP(Rp), NPT, DIN, JIS or ANSI process connections
• Suitable for high viscosity fluids
Description
The MX Series 2" DIGITAL FLOW METER are suitable for flows between 15 - 500 L/min (3.96 - 132.09 GPM), providing highly accurate flow measurement performance. The MX Series offers ±±0.5% accuracy of true reading in a compact footprint, requiring no flow conditioning and with high pressure and temperature capabilities.

Key features include:
  • Stainless Steel (316) construction
  • FEP Encapsulated seals
  • Maximum flow rate 500 L/min / 132.09 GPM
  • Accuracy of ±±0.5% of reading
  • Exceptional repeatability of ±±0.03%
  • Temperature up to 150 °C / 302 °F
  • 1 point factory calibration as standard, with additional points upon request

Specifications

MX50P-5VG
Material of construction
Stainless Steel (316) Stainless Steel (316) FEP Encapsulated
Design Specifications

2" DIN PN16 Flange
Technical Specifications
min
max

15 500 L/min
3.96 132.09 GPM
15 500 L/min
3.96 132.09 GPM
- 500 L/min
- 132.09 GPM
-40 150 °C
-40 302 °F
±0.5% ±0.03% 6.7 Pulses/Litre 25.37 Pulses/Gallon
ERA [LCD 17mm display]
Construction
 Aluminium
IP Rating
 IP67
Temp
Min: -40 Max: 80 °C Min: -40 Max: 176 °F
EX Approvals
 - Please refer to instruction manual and certification documentation for product appropriate certification information
Display
17mm/8mm
Outputs
Technical Specifications
Materials of Construction Stainless Steel / Stainless Steel / FEP
Port Connection DIN PN16 Flange
Rotor Type High Viscosity
Output Type ERA [LCD 17mm display]
Port Size and Flow Rate 2"                       15 - 500 L/min [4.0 - 132.1 GPM]
Accumulated total P
Body material Stainless Steel (316)
Category (Meter / Rotor /Seal) Stainless Steel / Stainless Steel / FEP
Imperial Max Flow Rate (<5cP) 132.0860262
Imperial Max Flow Rate (>5cP) 132.0860262
Imperial Min Flow rate (<5cp) 3.962580785
Imperial Min Flow Rate (>5cP) 3.962580785
Imperial Min Non-Lubricating Flow Rate -
Imperial Units GPM
IP Rating IP67
Lower LCD 8
Max pressure (bar) 82.73712
Max pressure (psi) 1200
Meter Name 2" DIGITAL FLOW METER
Meter Temperature max ( C) 150
Meter Temperature max ( F) 302
Meter Temperature min ( C) -40
Meter Temperature min ( F) -40
Metric Max Flow Rate (<5cP) 500
Metric Max Flow Rate (>5cP) 500
Metric Min Flow Rate (<5cp) 15
Metric Min Flow Rate (>5cP) 15
Metric Min Non-Lubricating Flow Rate -
Metric Units L/min
nominal K-factor (PPG) 25.36917834
nominal K-factor (PPL) 6.7
output - batch control function -
output - flow alarm -
output - pulse/transistor P
Output Construction Aluminium
Output EX Approvals -
Output max temp (F) 176
Output max temperature ( C) 80
Output min temp (F) -40
Output Min temperature ( C) -40
Output Name ERA DISPLAY
Output Signal 1 -
Output Signal 2 -
Output- 4-20mA P
Port Connections DIN PN16 Flange
preset total -
resettable total P
rotor material Stainless Steel (316)
Series MX Series
Threaded Port Adaptor (Separately) N
Upper LCD 17
Accuracy ±0.5%
repeatability ±0.03%
bushing Carbon
Port Size 2"
