  • 1" DIGITAL FLOW METER with FLAME PROOF (Ex D)

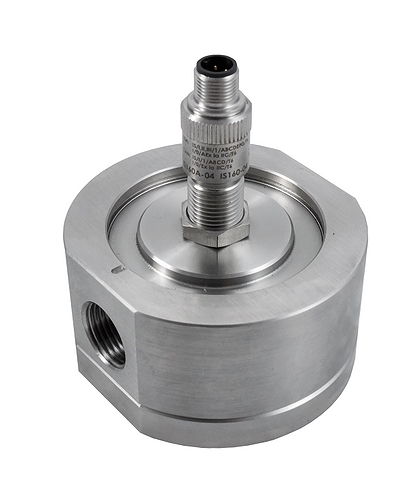

1" DIGITAL FLOW METER with FLAME PROOF (Ex D)

Product Code: MX25P-1VC
Description
The MX Series 1" DIGITAL FLOW METER are suitable for flows between 6 - 120 L/min (1.59 - 31.70 GPM), providing highly accurate flow measurement performance. The MX Series offers ±±0.5% accuracy of true reading in a compact footprint, requiring no flow conditioning and with high pressure and temperature capabilities.

Key features include:
  • Stainless Steel (316) construction
  • FEP Encapsulated seals
  • Maximum flow rate 120 L/min / 31.70 GPM
  • Accuracy of ±±0.5% of reading
  • Exceptional repeatability of ±±0.03%
  • Temperature up to 150 °C / 302 °F
  • 1 point factory calibration as standard, with additional points upon request

Specifications

MX25P-1VC
Material of construction
Stainless Steel (316) Stainless Steel (316) FEP Encapsulated
Design Specifications

1" G Thread
Technical Specifications
min
max

10 100 L/min
2.64 26.42 GPM
6 120 L/min
1.59 31.70 GPM
- 120 L/min
- 31.70 GPM
-40 150 °C
-40 302 °F
±0.5% ±0.03% 36 Pulses/Litre 136.31 Pulses/Gallon
EX Approved [Ex D]
Construction
 Stainless Steel
IP Rating
 -
Temp
Min: - Max: - °C Min: - Max: - °F
EX Approvals
 IECEX, ATEX, US & CAN THROUGH FM Please refer to instruction manual and certification documentation for product appropriate certification information
Display
-mm/-mm
Outputs
Technical Specifications
Materials of Construction Stainless Steel / Stainless Steel / FEP
Port Connection G Thread
Rotor Type High Viscosity
Output Type EX Approved [Ex D]
Port Size and Flow Rate 1"                       6 - 120 L/min [1.6 - 31.7 GPM]
Accumulated total -
Body material Stainless Steel (316)
Category (Meter / Rotor /Seal) Stainless Steel / Stainless Steel / FEP
Imperial Max Flow Rate (<5cP) 26.41720524
Imperial Max Flow Rate (>5cP) 31.70064628
Imperial Min Flow rate (<5cp) 2.641720524
Imperial Min Flow Rate (>5cP) 1.585032314
Imperial Min Non-Lubricating Flow Rate -
Imperial Units GPM
IP Rating -
Lower LCD -
Max pressure (bar) 137.8952
Max pressure (psi) 2000
Meter Name 1" DIGITAL FLOW METER
Meter Temperature max ( C) 150
Meter Temperature max ( F) 302
Meter Temperature min ( C) -40
Meter Temperature min ( F) -40
Metric Max Flow Rate (<5cP) 100
Metric Max Flow Rate (>5cP) 120
Metric Min Flow Rate (<5cp) 10
Metric Min Flow Rate (>5cP) 6
Metric Min Non-Lubricating Flow Rate -
Metric Units L/min
nominal K-factor (PPG) 136.312003
nominal K-factor (PPL) 36
output - batch control function -
output - flow alarm -
output - pulse/transistor Hall Effect, NPN
Output Construction Stainless Steel
Output EX Approvals IECEX, ATEX, US & CAN THROUGH FM
Output max temp (F) -
Output max temperature ( C) -
Output min temp (F) -
Output Min temperature ( C) -
Output Name FLAME PROOF (Ex D)
Output Signal 1 Hall Effect, NPN
Output Signal 2 -
Output- 4-20mA -
Port Connections G Thread
preset total -
resettable total -
rotor material Stainless Steel (316)
Series MX Series
Threaded Port Adaptor (Separately) N
Upper LCD -
Accuracy ±0.5%
repeatability ±0.03%
bushing Carbon
Port Size 1"
