  • 1 1/2" DIGITAL FLOWMETER with PR DISPLAY

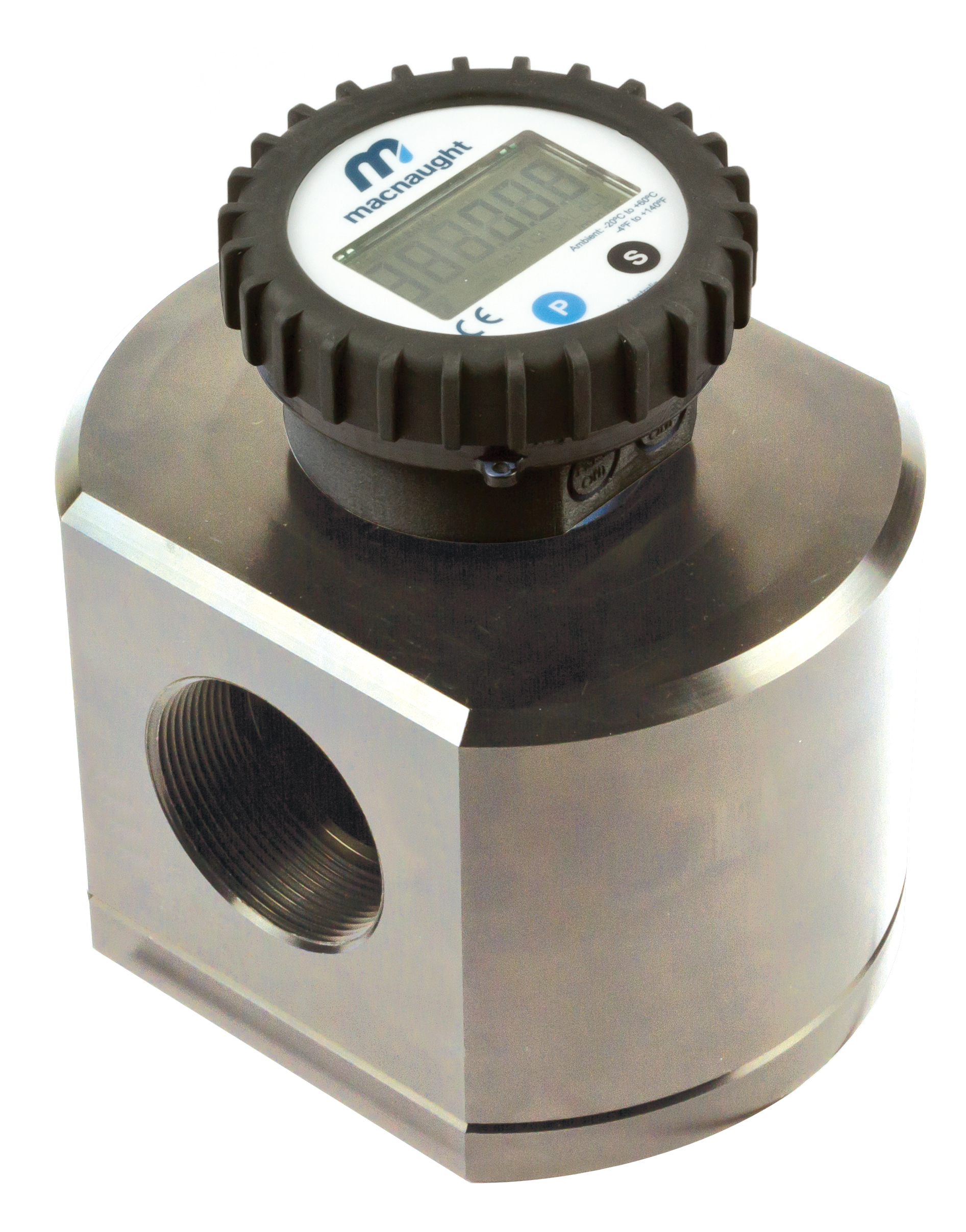

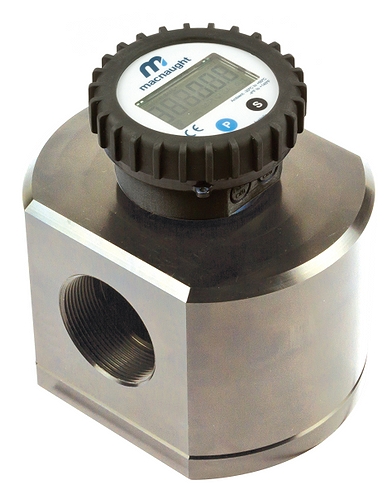

1 1/2" DIGITAL FLOWMETER with PR DISPLAY

PR Digital Register (MX40P-3TD)
Description
1½" Oval gear flow meter designed for a broad range of Industrial Process applications.
• Stainless Steel construction
• FEP - Teflon® encapsulated seals
• Max flow rate 250 LPM / 66 GPM
• Temperatures up to 150°C
• Accuracy +/- 0.5% (0.25% available)
• Available with BSP(Rp), NPT, DIN, JIS or ANSI process connections
• Suitable for high viscosity fluids
Description
The MX Series 1 1/2" DIGITAL FLOWMETER are suitable for flows between 10 - 250 L/min (2.64 - 66.04 GPM), providing highly accurate flow measurement performance. The MX Series offers ±±0.5% accuracy of true reading in a compact footprint, requiring no flow conditioning and with high pressure and temperature capabilities.

Key features include:
  • Stainless Steel (316) construction
  • FEP Encapsulated seals
  • Maximum flow rate 250 L/min / 66.04 GPM
  • Accuracy of ±±0.5% of reading
  • Exceptional repeatability of ±±0.03%
  • Temperature up to 150 °C / 302 °F
  • 1 point factory calibration as standard, with additional points upon request

Specifications

MX40P-3TD
Material of construction
Stainless Steel (316) Stainless Steel (316) FEP Encapsulated
Design Specifications

1 1/2" ANSI 150 Flange
Technical Specifications
min
max

15 235 L/min
3.96 62.08 GPM
10 250 L/min
2.64 66.04 GPM
- 250 L/min
- 66.04 GPM
-40 150 °C
-40 302 °F
±0.5% ±0.03% 14.5 Pulses/Litre 54.90 Pulses/Gallon
PR [LCD 12mm display]
Construction
 Polypropylene
IP Rating
 IP67
Temp
Min: -20 Max: 60 °C Min: -4 Max: 140 °F
EX Approvals
 - Please refer to instruction manual and certification documentation for product appropriate certification information
Display
12mm/8mm
Outputs
Technical Specifications
Materials of Construction Stainless Steel / Stainless Steel / FEP
Port Connection ANSI 150 Flange
Rotor Type High Temperature
Output Type PR [LCD 12mm display]
Port Size and Flow Rate 1 1/2"                   10 - 250 L/min [2.6 - 66.0 GPM]
Accumulated total P
Body material Stainless Steel (316)
Category (Meter / Rotor /Seal) Stainless Steel / Stainless Steel / FEP
Imperial Max Flow Rate (<5cP) 62.0804323
Imperial Max Flow Rate (>5cP) 66.04301309
Imperial Min Flow rate (<5cp) 3.962580785
Imperial Min Flow Rate (>5cP) 2.641720524
Imperial Min Non-Lubricating Flow Rate -
Imperial Units GPM
IP Rating IP67
Lower LCD 8
Max pressure (bar) 103.4214
Max pressure (psi) 1500
Meter Name 1 1/2" DIGITAL FLOWMETER
Meter Temperature max ( C) 150
Meter Temperature max ( F) 302
Meter Temperature min ( C) -40
Meter Temperature min ( F) -40
Metric Max Flow Rate (<5cP) 235
Metric Max Flow Rate (>5cP) 250
Metric Min Flow Rate (<5cp) 15
Metric Min Flow Rate (>5cP) 10
Metric Min Non-Lubricating Flow Rate -
Metric Units L/min
nominal K-factor (PPG) 54.90344566
nominal K-factor (PPL) 14.5
output - batch control function -
output - flow alarm -
output - pulse/transistor -
Output Construction Polypropylene
Output EX Approvals -
Output max temp (F) 140
Output max temperature ( C) 60
Output min temp (F) -4
Output Min temperature ( C) -20
Output Name PR DISPLAY
Output Signal 1 -
Output Signal 2 -
Output- 4-20mA -
Port Connections ANSI 150 Flange
preset total -
resettable total P
rotor material Stainless Steel (316)
Series MX Series
Threaded Port Adaptor (Separately) N
Upper LCD 12
Accuracy ±0.5%
repeatability ±0.03%
bushing Carbon
Port Size 1 1/2"
