  • 4" DIGITAL FLOW METER with STANDARD PULSE

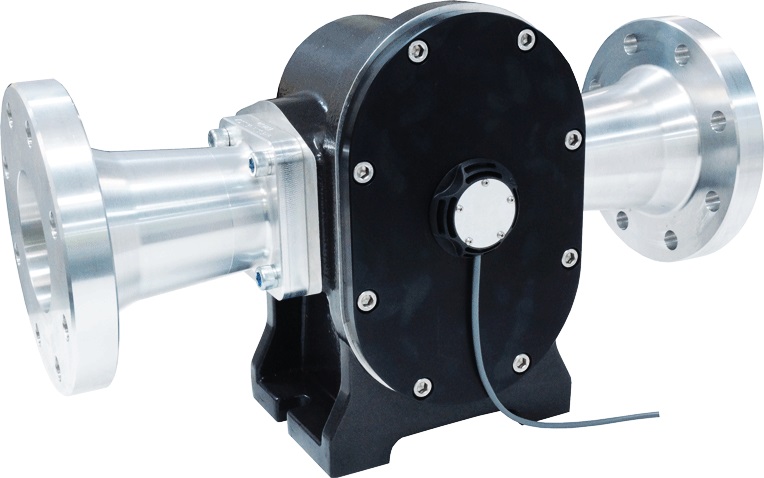

4" DIGITAL FLOW METER with STANDARD PULSE

Product Code: MX100F-3SA
Description
4" Oval gear flow meter designed for the measurement of Fuels and Oils.
• Aluminium construction
• Viton® (FKM) seals
• Max flow rate 1200 LPM / 317 GPM
• Temperatures up to 120°C
• Accuracy +/- 0.5% (0.25% available)
• Available with BSP(Rp), NPT, DIN, JIS or ANSI process connections
Description
The MX Series 4" DIGITAL FLOW METER are suitable for flows between 120 - 1200 L/min (31.70 - 317.01 GPM), providing highly accurate flow measurement performance. The MX Series offers ±±0.5% accuracy of true reading in a compact footprint, requiring no flow conditioning and with high pressure and temperature capabilities.

Key features include:
  • Aluminium (6061) construction
  • FKM (Viton) seals
  • Maximum flow rate 1200 L/min / 317.01 GPM
  • Accuracy of ±±0.5% of reading
  • Exceptional repeatability of ±±0.03%
  • Temperature up to 120 °C / 248 °F
  • 1 point factory calibration as standard, with additional points upon request

Specifications

MX100F-3SA
Material of construction
Aluminium (6061) Aluminium (6061) FKM (Viton)
Design Specifications

4" ANSI 150 Flange
Technical Specifications
min
max

220 1000 L/min
58.12 264.17 GPM
120 1200 L/min
31.70 317.01 GPM
- 1200 L/min
- 317.01 GPM
-40 120 °C
-40 248 °F
±0.5% ±0.03% 2.3 Pulses/Litre 8.71 Pulses/Gallon
Standard Pulse
Construction
 Polypropylene
IP Rating
 IP67
Temp
Min: -40 Max: 120 °C Min: -40 Max: 248 °F
EX Approvals
 - Please refer to instruction manual and certification documentation for product appropriate certification information
Display
-mm/-mm
Outputs
Technical Specifications
Materials of Construction Aluminium / Aluminium / FKM
Port Connection ANSI 150 Flange
Rotor Type Standard
Output Type Standard Pulse
Port Size and Flow Rate 4"                       120 - 1200 L/min [31.7 - 317.0 GPM]
Accumulated total -
Body material Aluminium (6061)
Category (Meter / Rotor /Seal) Aluminium / Aluminium / FKM
Imperial Max Flow Rate (<5cP) 264.1720524
Imperial Max Flow Rate (>5cP) 317.0064628
Imperial Min Flow rate (<5cp) 58.11785152
Imperial Min Flow Rate (>5cP) 31.70064628
Imperial Min Non-Lubricating Flow Rate -
Imperial Units GPM
IP Rating IP67
Lower LCD -
Max pressure (bar) 12.06583
Max pressure (psi) 175
Meter Name 4" DIGITAL FLOW METER
Meter Temperature max ( C) 120
Meter Temperature max ( F) 248
Meter Temperature min ( C) -40
Meter Temperature min ( F) -40
Metric Max Flow Rate (<5cP) 1000
Metric Max Flow Rate (>5cP) 1200
Metric Min Flow Rate (<5cp) 220
Metric Min Flow Rate (>5cP) 120
Metric Min Non-Lubricating Flow Rate -
Metric Units L/min
nominal K-factor (PPG) 8.708822416
nominal K-factor (PPL) 2.3
output - batch control function -
output - flow alarm -
output - pulse/transistor Reed + Hall Effect,NPN
Output Construction Polypropylene
Output EX Approvals -
Output max temp (F) 248
Output max temperature ( C) 120
Output min temp (F) -40
Output Min temperature ( C) -40
Output Name STANDARD PULSE
Output Signal 1 Reed
Output Signal 2 Hall Effect, NPN
Output- 4-20mA -
Port Connections ANSI 150 Flange
preset total -
resettable total -
rotor material Aluminium (6061)
Series MX Series
Threaded Port Adaptor (Separately) N
Upper LCD -
Accuracy ±0.5%
repeatability ±0.03%
bushing Carbon
Port Size 4"
