  • 3" DIGITAL FLOW METER with STANDARD PULSE

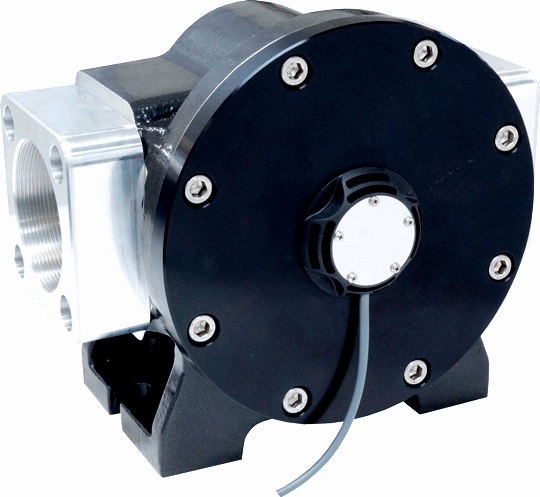

3" DIGITAL FLOW METER with STANDARD PULSE

Product Code: MX75F-3SA
Description
3" Oval gear flow meter designed for the measurement of Fuels and Oils.
• Aluminium construction
• Viton® (FKM) seals
• Max flow rate 733 LPM / 194 GPM
• Temperatures up to 120°C
• Accuracy +/- 0.5% (0.25% available)
• Available with BSP(Rp), NPT, DIN, JIS or ANSI process connections
Description
The MX Series 3" DIGITAL FLOW METER are suitable for flows between 20 - 733 L/min (5.28 - 193.64 GPM), providing highly accurate flow measurement performance. The MX Series offers ±±0.5% accuracy of true reading in a compact footprint, requiring no flow conditioning and with high pressure and temperature capabilities.

Key features include:
  • Aluminium (6061) construction
  • FKM (Viton) seals
  • Maximum flow rate 733 L/min / 193.64 GPM
  • Accuracy of ±±0.5% of reading
  • Exceptional repeatability of ±±0.03%
  • Temperature up to 120 °C / 248 °F
  • 1 point factory calibration as standard, with additional points upon request

Specifications

MX75F-3SA
Material of construction
Aluminium (6061) Aluminium (6061) FKM (Viton)
Design Specifications

3" ANSI 150 Flange
Technical Specifications
min
max

60 600 L/min
15.85 158.50 GPM
20 733 L/min
5.28 193.64 GPM
- 733 L/min
- 193.64 GPM
-40 120 °C
-40 248 °F
±0.5% ±0.03% 2.58 Pulses/Litre 9.77 Pulses/Gallon
Standard Pulse
Construction
 Polypropylene
IP Rating
 IP67
Temp
Min: -40 Max: 120 °C Min: -40 Max: 248 °F
EX Approvals
 - Please refer to instruction manual and certification documentation for product appropriate certification information
Display
-mm/-mm
Outputs
Technical Specifications
Materials of Construction Aluminium / Aluminium / FKM
Port Connection ANSI 150 Flange
Rotor Type Standard
Output Type Standard Pulse
Port Size and Flow Rate 3"                       20 - 733 L/min [5.3 - 193.6 GPM]
Accumulated total -
Body material Aluminium (6061)
Category (Meter / Rotor /Seal) Aluminium / Aluminium / FKM
Imperial Max Flow Rate (<5cP) 158.5032314
Imperial Max Flow Rate (>5cP) 193.6381144
Imperial Min Flow rate (<5cp) 15.85032314
Imperial Min Flow Rate (>5cP) 5.283441047
Imperial Min Non-Lubricating Flow Rate -
Imperial Units GPM
IP Rating IP67
Lower LCD -
Max pressure (bar) 12.06583
Max pressure (psi) 175
Meter Name 3" DIGITAL FLOW METER
Meter Temperature max ( C) 120
Meter Temperature max ( F) 248
Meter Temperature min ( C) -40
Meter Temperature min ( F) -40
Metric Max Flow Rate (<5cP) 600
Metric Max Flow Rate (>5cP) 733
Metric Min Flow Rate (<5cp) 60
Metric Min Flow Rate (>5cP) 20
Metric Min Non-Lubricating Flow Rate -
Metric Units L/min
nominal K-factor (PPG) 9.769026884
nominal K-factor (PPL) 2.58
output - batch control function -
output - flow alarm -
output - pulse/transistor Reed + Hall Effect,NPN
Output Construction Polypropylene
Output EX Approvals -
Output max temp (F) 248
Output max temperature ( C) 120
Output min temp (F) -40
Output Min temperature ( C) -40
Output Name STANDARD PULSE
Output Signal 1 Reed
Output Signal 2 Hall Effect, NPN
Output- 4-20mA -
Port Connections ANSI 150 Flange
preset total -
resettable total -
rotor material Aluminium (6061)
Series MX Series
Threaded Port Adaptor (Separately) N
Upper LCD -
Accuracy ±0.5%
repeatability ±0.03%
bushing Carbon
Port Size 3"
