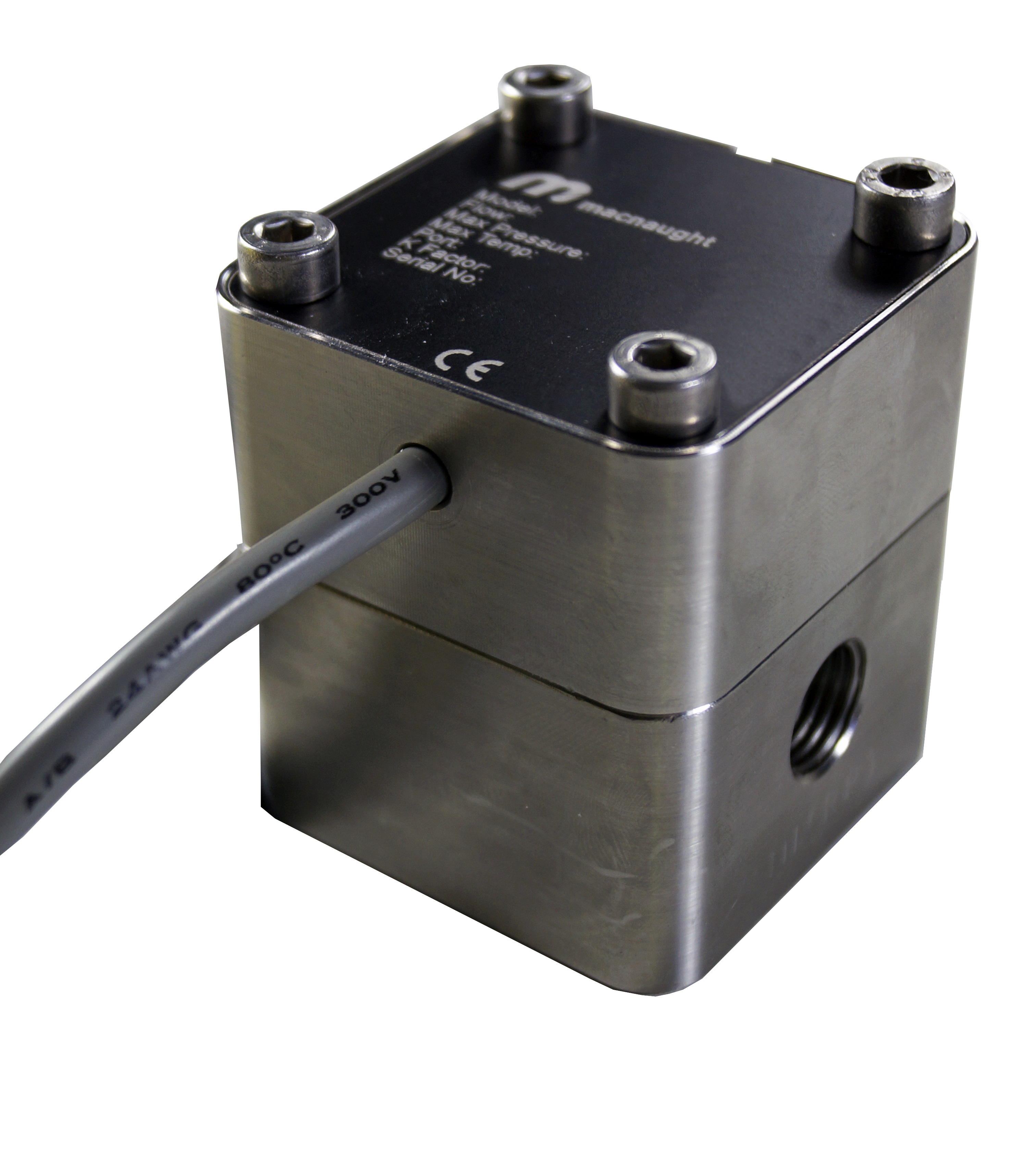

1/4" PULSE FLOW METERS with Pulse Output

Product Code: CR009-4S2
Description
The M Series 1/4" PULSE FLOW METERS are suitable for flows between 15 - 500 L/hr (3.96 - 132.09 GPH), providing highly accurate flow measurement performance. The M Series offers ±0.50% accuracy of true reading in a compact footprint, requiring no flow conditioning and with high pressure and temperature capabilities.

Key features include:
  • PPS construction
  • FFKM (Perfluoro Elastomer) seals
  • Maximum flow rate 500 L/hr / 132.09 GPH
  • Accuracy of ±0.50% of reading
  • Exceptional repeatability of ±0.03%
  • Temperature up to 80 °C / 176 °F
  • 1 point factory calibration as standard, with additional points upon request

Specifications

CR009-4S2
Material of construction
PPS PPS FFKM (Perfluoro Elastomer)
Design Specifications

1/4" Rc Thread
Technical Specifications
min
max

25 500 L/hr
6.60 132.09 GPH
15 500 L/hr
3.96 132.09 GPH
- 500 L/hr
- 132.09 GPH
-40 80 °C
-40 176 °F
0.50% 0.03% 400 Pulses/Litre 1,514.58 Pulses/Gallon
Reed/Reed
Construction
 -
IP Rating
 IP67
Temp
Min: - Max: - °C Min: - Max: - °F
EX Approvals
 - Please refer to instruction manual and certification documentation for product appropriate certification information
Display
-mm/-mm
Outputs
Technical Specifications
Materials of Construction PPS / PPS / FFKM
Port Connection Rc Thread
Rotor Type Standard
Output Type Reed/Reed
Port Size and Flow Rate 1/4"                     15 - 500 L/hr [4.0 - 132.1 GPH]
Accumulated total -
Body material PPS
Category (Meter / Rotor /Seal) PPS / PPS / FFKM
Imperial Max Flow Rate (<5cP) 132.0860262
Imperial Max Flow Rate (>5cP) 132.0860262
Imperial Min Flow rate (<5cp) 6.604301309
Imperial Min Flow Rate (>5cP) 3.962580785
Imperial Min Non-Lubricating Flow Rate -
Imperial Units GPH
IP Rating IP67
Lower LCD -
Max pressure (bar) 5.17107
Max pressure (psi) 75
Meter Name 1/4" PULSE FLOW METERS
Meter Temperature max ( C) 80
Meter Temperature max ( F) 176
Meter Temperature min ( C) -40
Meter Temperature min ( F) -40
Metric Max Flow Rate (<5cP) 500
Metric Max Flow Rate (>5cP) 500
Metric Min Flow Rate (<5cp) 25
Metric Min Flow Rate (>5cP) 15
Metric Min Non-Lubricating Flow Rate -
Metric Units L/hr
nominal K-factor (PPG) 1514.577811
nominal K-factor (PPL) 400
output - batch control function -
output - flow alarm -
output - pulse/transistor Reed + Reed
Output Construction -
Output EX Approvals -
Output max temp (F) -
Output max temperature ( C) -
Output min temp (F) -
Output Min temperature ( C) -
Output Name Pulse Output
Output Signal 1 Reed
Output Signal 2 Reed
Output- 4-20mA -
Port Connections Rc Thread
preset total -
resettable total -
rotor material PPS
Series M Series
Threaded Port Adaptor (Separately) N
Upper LCD -
Accuracy 0.005
repeatability 0.0003
bushing no bushes
Port Size 1/4"
